manufacturer 6215-2rs 6215 deep groove ball bearing rodamientos de bolas rodamientos

  • 20 - 99 Pieces
    $2.65
  • >=100 Pieces
    $2.56
Brand Name:
any world famour brand
Outside Diameter:
130 mm
Lead Time:
Quantity(Pieces) 1 - 10 11 - 1000 >1000
Est. Time(days) 2 7 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Samples:
$2.65 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Structure:
Deep Groove
Type:
Ball
Place of Origin:
China
Model Number:
6215 6215-2rs
Bore Size:
75 mm
Number of Row:
Single Row
Precision Rating:
P0 P4
Seals Type:
Open or zz/2rs sealed
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Energy & Mining, Food & Beverage Shops
Product name:
6215 deep groove ball bearing rodamientos de bolas rodamientos
Bearing Material:
Chrome Steel Gcr15 6215 deep groove ball bearing
Clearance:
C2 C0 C3 C4 C5
Service:
OEM Customized Services
Seal:
ZZ 2Z 2RS RS Open
Keywords:
rodamientos
Name:
6215 ball bearing
Model:
6215 bearing
Package:
Original Package bearing 6215
Item:
rodamientos de bolas
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week

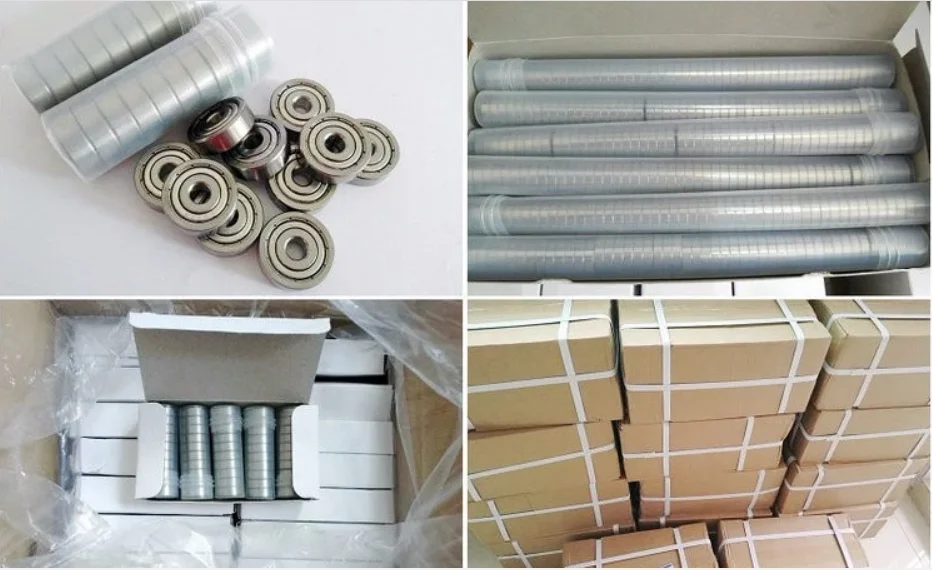

Packaging & Delivery
Packaging Details
1. Neutral Packing
apply anti-rust grease to the bearing + neutral plastic bag/tube/box + white/yellow neutral carton + pallet/wooden case + stretch film outside
2. Industrial Packing
apply anti-rust grease to the bearing + industrial kraft paper + carton + pallet/wooden case + stretch film outside
3.Standard Export Packing
apply anti-rust grease to the bearing + plastic color bag/plastics tube + color box + carton + pallet/wooden case + stretch film outside
4.As customer's exact requirement.
Port
Tianjin Port
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 10 11 - 1000 >1000
Est. Time(days) 2 7 To be negotiated
Video Description
Product Description
manufacturer 6215-2rs 6215 deep groove ball bearing rodamientos de bolas rodamientos

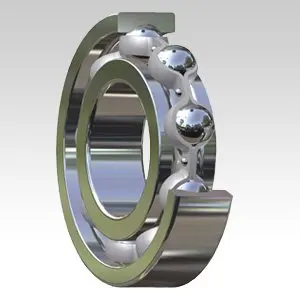

The basic deep groove ball bearing consists of an outer ring,an inner ring,a set of steel balls and a set of cages.There are two types of deep groove ball bearings:single row deep groove ball bearing and double row deep groove ball bearing.

manufacturer 6215-2rs 6215 deep groove ball bearing rodamientos de bolas rodamientos

Los rodamientos rígidos de bolas consisten en un anillo exterior, un interior, un conjunto de bolas de acero y un conjunto de
jaulas. Hay dos tipos de rodamientos rígidos de bolas: de una o dos hileras. La estructura de bolas de ranura profunda también se
divide en dos tipos: sellados y abiertos. El tipo abierto se refiere al rodamiento sin una estructura sellada. El tipo sellado se
divide en lo anti-polvo y lo anti-aceite. El material de la cubierta sellada está estampado de una chapa de acero, simplemente
sirve para evitar que el polvo ingrese a la pista del rodamiento. El tipo a prueba de aceite es un sello de aceite de contacto,que puede evitar que se desborde el lubricante del rodamiento.

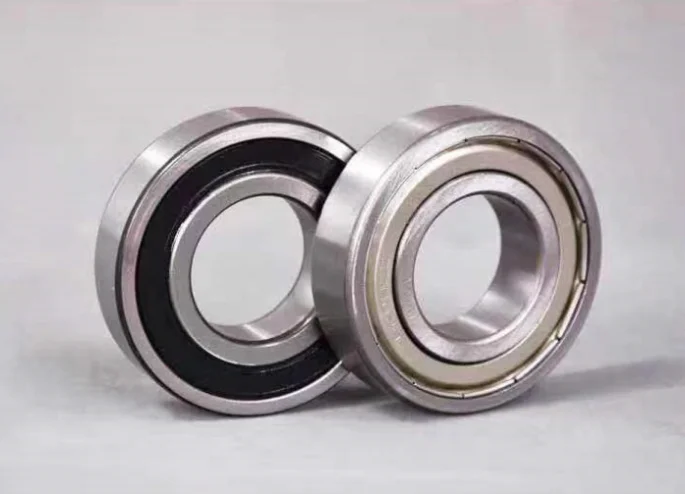

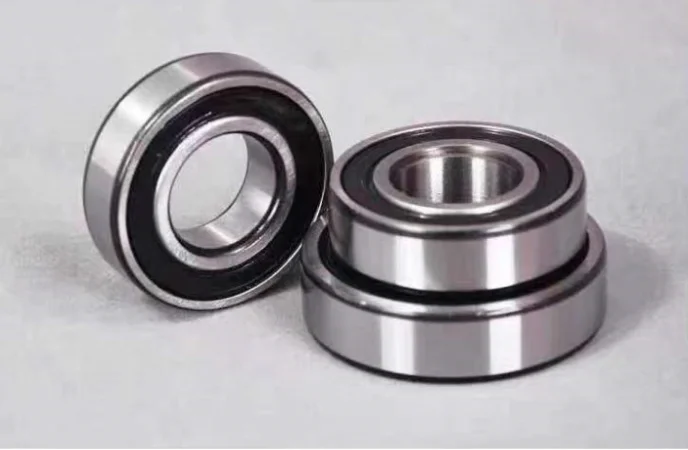

Choose The Right Bearing for Your Application. 2RS - Double Rubber Seal - Suitable for Harsh External Environments, Low Rotate
Resistance. ZZ - Double Metal Seal / Dust Cover - Suitable for Good External Environment, Not Rotate Resistance. Open - Usually
Applied to The Inside of Machinery, Not Rotate Resistance. Se caracteriza por su baja resistencia a la fricción y su alta
velocidad, y puede usarse en componentes que pueden soportar carga radial o carga combinada que actúa tanto en dirección radial
como axial. También puede utilizar en los componentes que soporta la carga axial, por ejemplo: motor eléctrico de baja potencia,
automóviles, cajas de cambios de tractor y de máquinas herramienta, máquinas generales y herramientas, etc.
manufacturer 6215-2rs 6215 deep groove ball bearing rodamientos de bolas rodamientos

The feature of Deep Groove Ball Bearing:
Anti-dust
Low Noise
Long Life-time
High Abrasion Resistance
Iron Sealing
Rubber Sealing
Inter Diameter (mm)
Outer Diameter  (mm)
Width  (mm)
Rs min (mm)
Dynamic load (kN)
Static load (kN)
Weight (kg)
6300ZZ
6300RS
10
35
11
0,6
8,15
3,45
0,057
6301ZZ
6301RS
12
37
12
1
9,65
4,15
0,064
6302ZZ
6302RS
15
42
13
1
11,4
5,4
0,09
6303ZZ
6303RS
17
47
14
1
13,4
6,55
0,117
6304ZZ
6304RS
20
52
15
1,1
16
7,8
0,153
6305ZZ
6305RS
25
62
17
1,1
22,4
11,4
0,232
6306ZZ
6306RS
30
72
19
1,1
29
16,3
0,348
6307ZZ
6307RS
35
80
21
1,5
33,5
19
0,458
6308ZZ
6308RS
40
90
23
1,5
42,5
25
0,632
6309ZZ
6309RS
45
100
25
1,5
53
32
0,848
6310ZZ
6310RS
50
110
27
2
62
38
1,1
6311ZZ
6311RS
55
120
29
2
76,5
47,5
1,39
6312ZZ
6312RS
60
130
31
2,1
81,5
52
1,72
6313ZZ
6313RS
65
140
33
2,1
93
60
2,13
6314ZZ
6314RS
70
150
35
2,1
104
68
2,63
6315ZZ
6315RS
75
160
37
2,1
114
76,5
3,12
6316ZZ
6316RS
80
170
39
2,1
122
86,5
3,73
6317ZZ
6317RS
85
180
41
3
125
88
4,24
6319ZZ
6319RS
95
200
45
3
143
112
6,14
Size Information
Types of deep groove ball bearing:
Product name
manufacturer 6215-2rs 6215 deep groove ball bearing rodamientos de bolas rodamientos
Miniature bearings
bearings with a nominal outside diameter less than 26mm.
M
L
XL
Small bearings
bearings with outer diameter between 28-55mm.
27.9
29.9
31.9
Small and medium
sized bearings with outer diameter between 60-115mm.
15.9
16.5
17.1
Medium and large bearings
bearings with outer diameter between 120-190mm.
Large  bearings
bearings with outer diameter between 200-430mm.
Extra large bearings
bearings with outer diameter between 440mm or more.

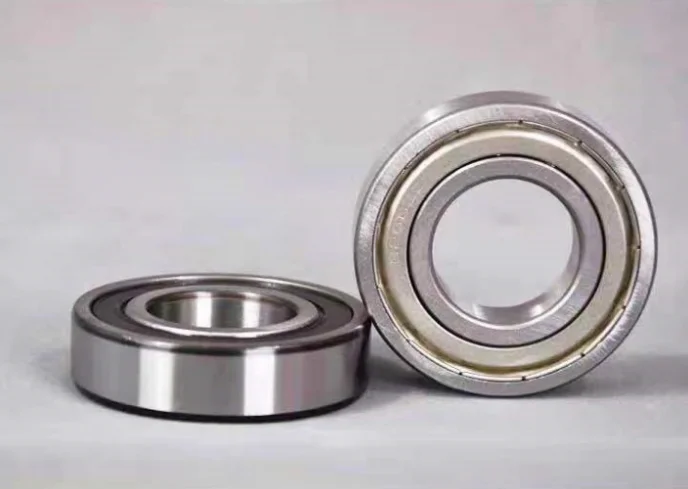

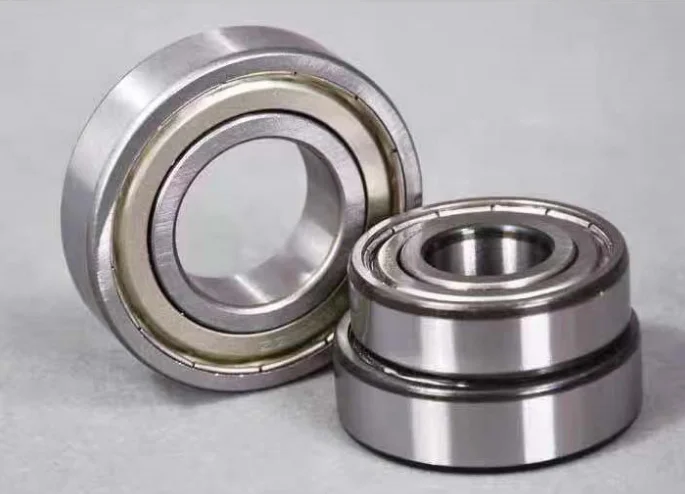

Detailed Images

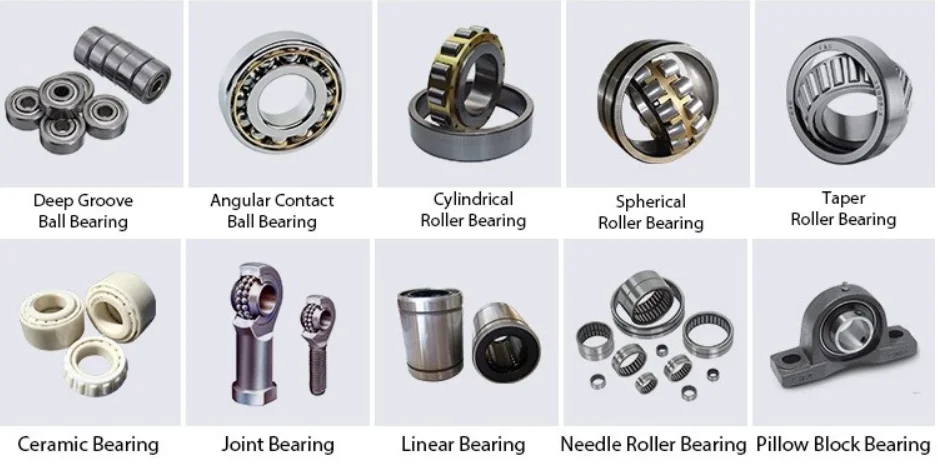

Related Products

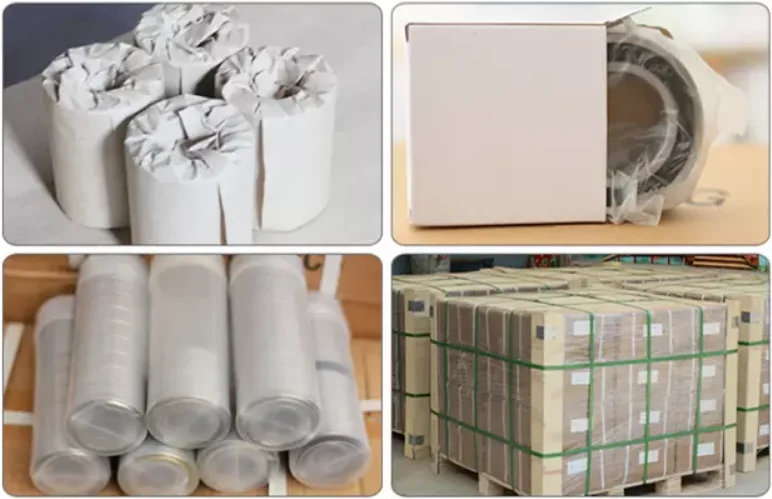

Packing&Shipping
manufacturer 6215-2rs 6215 deep groove ball bearing rodamientos de bolas rodamientos
1. Neutral Packing apply anti-rust grease to the bearing + neutral plastic bag/tube/box + white/yellow neutral carton + pallet/wooden case + stretch film outside 2. Industrial Packing apply anti-rust grease to the bearing + industrial kraft paper + carton + pallet/wooden case + stretch film outside 3.Standard Export Packing apply anti-rust grease to the bearing + plastic color bag/plastics tube + color box + carton + pallet/wooden case + stretch film outside 4.As customer's exact requirement.

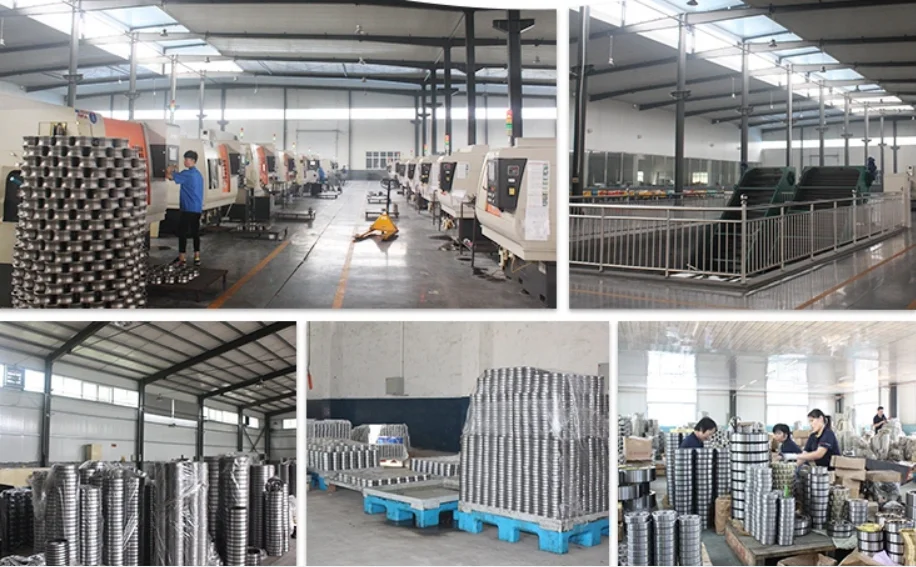

Manufacturing Technique

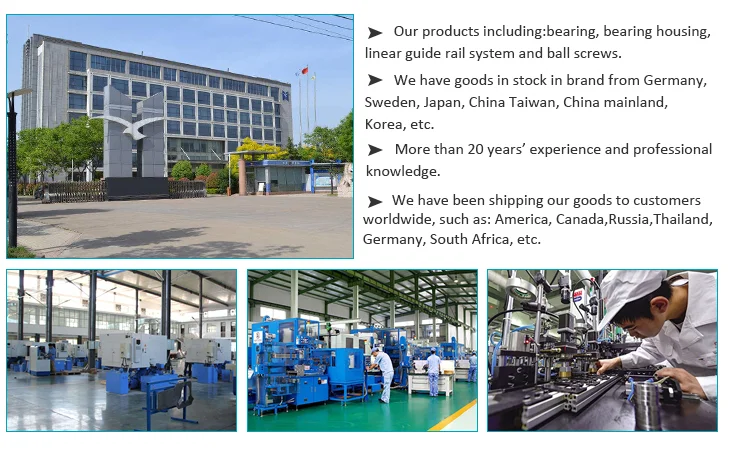

Company Introduction
FAQ
1. Do you accept customize?
Yes.and MOQ depends on exact model you need.

2. How you send goods to your customer?
We can ship goods via: DHL,TNT,FEDEX,UPS,ARAMEX,AIR AND SEA DELIVERY.

3. How long is the delivery time after order placed?
a. for goods in stock,can delivery within 1-2days.
b. for goods which don't have stock,delivery time depends on model number and order qty.

4. You provide free consultation service?
Yes, before, during and after order, anytime.
5. How can I contact you?
Email,whatsapp,wechat,phone,etc.
