Rotary support slewing bearing inner or outer teeth mesa giratoria rodamiento

  • 1 - 99 Sets
    $130.00
  • >=100 Sets
    $125.00
Bore Size:
100-160mm
Outside Diameter:
260-290mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 1 Negotiable
Customization:
Customized logo (Min. Order: 100 Sets)
Customized packaging (Min. Order: 100 Sets)

More

Graphic customization (Min. Order: 100 Sets) Less
Samples:
$130.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Type:
Slewing Bearing
Place of Origin:
China
Brand Name:
China
Model Number:
slewing ring
Feature:
Cross Roller, high quality long life
Gear Options:
External Gear Only
Seals Type:
zz
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Energy & Mining
Product Name:
slewing bearing inner or outer teeth mesa giratoria rodamiento
Application:
Crane Accessories
Product Type:
Single Row Four Point Contact Slewing Bearing
Product Keywords:
Slewing Ring Turntable
Material:
Stainless Steel
Service:
OEM Service
Gear type:
Inner or External Gear
Shipping ways:
Express or sea delivery
Condition:
100% new
Supply Ability
Supply Ability:
1100 Set/Sets per Week supply from stock
Packaging & Delivery
Packaging Details
1. polybag + box +carton 2. industrial standard packing 3. individual box packing 4. as customers' order 5.package of slewing bearing
Port
Tianjin Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 1 To be negotiated

Rotary support slewing bearing inner or outer teeth mesa giratoria rodamiento

Product Description



Descroption :

Slewing bearings are also called turntable bearings, and some people also call them:

rotary bearings, swivel bearings.

Slewing bearing

Toothless slewing bearing

Roller outer tooth slewing disc support bearing

Support structure bearing

Slewing ring

Turntable bearings

Turntable

Slewing mechanism

Distributor bearings

Rotary support 380

Single row, two , three or four point contact ball turntable bearing


Slewing bearing, slewing ring bearing, turntable bearing, slewing ring.Slewing bearings are widely used in real industry. They are called "joints of machines". They are mechanical institutions that need to perform relative rotary motion between two objects, and also need to bear axial force, radial force and tipping moment. Necessary important transmission parts. With the rapid development of the machinery industry, slewing bearings have been widely used in marine equipment, engineering machinery, light industrial machinery, metallurgical machinery, medical machinery, industrial machinery and other industries.

Slewing bearing is a new type of mechanical parts. It consists of inner and outer rings, rolling elements, etc. Slewing bearing is a large bearing capable of bearing comprehensive loads, and can simultaneously bear large axial and radial loads and overturning moments.



Types of slewing bearing

Single-row 4-point contact ball series

Single-row crossed roller series

Double-row ball series

Three-row roller series

Roller and ball combination series

Quenching slewing ring bearing

For Non-gear, External Gear, Internal Gear



Application fields of rotary support bearings

Rotary support slewing bearing inner or outer teeth mesa giratoria rodamiento
There are different working methods according to the actual use and design structure. There are two basic working methods: 1. The inner ring fixes its support function and the outer ring rotates; 2

The outer ring fixes its support function and the inner ring rotates.


Construction machinery
Slewing bearings are widely used. Engineering machinery is the first and most widely used place for slewing bearings, such as earthmoving machines, excavators, disassemblers, stackers and reclaimers, graders, rollers, dynamic compactors, rock drilling machines, roadheaders, etc. Others include concrete machinery: concrete pump trucks, concrete mixing booms, belt feeders Feeding machinery: disc feeders, sand mixers; lifting machinery: wheeled cranes, crawler cranes, doors Block cranes, tower cranes, forklift cranes, cranes, gantry cranes; foundation treatment machinery: impact reverse cycle rigs, rotary drills, impact rotary drills, rotary drilling rigs, reverse cycle rotary rigs, positive cycle Rotary drilling rig, long spiral engineering drilling rig, diving engineering drilling rig, hydrostatic pile driver, pile driver; engineering ships: dredgers; special vehicles: bridge inspection vehicles, fire engines, window cleaners, flat beam carriers, aerial work vehicles, Self-propelled aerial work platform; light industry machinery: beverage machinery, bottle blowing machine, packaging machinery, filling machine, rotary bottle unscrambler, injection molding machine; ship crane: floating crane.



Size data for some types:



Code

Outer size

Set up size



Nogeared
DL
mm

External gear
DL
mm

Internal gear
DL
mm

D
mm

d
mm

H
mm

D1
mm

D2
mm

n

Φ
mm

n1

D3
mm

d1
mm

1

110.25.500

111.25.500

113.25.500

602

398

75

566

434

20

18

4

498

502

112.25.500

114.25.500

2

110.25.560

111.25.560

113.25.560

662

458

75

626

494

20

18

4

558

562

112.25.560

114.25.560

3

110.25.630

111.25.630

113.25.630

732

528

75

696

564

24

18

4

628

632

112.25.630

114.25.630

4

110.25.710

111.25.710

113.25.710

812

608

75

776

644

24

18

4

708

712

112.25.710

114.25.710

5

110.28.800

111.28.800

113.28.800

922

678

82

878

722

30

22

6

798

802

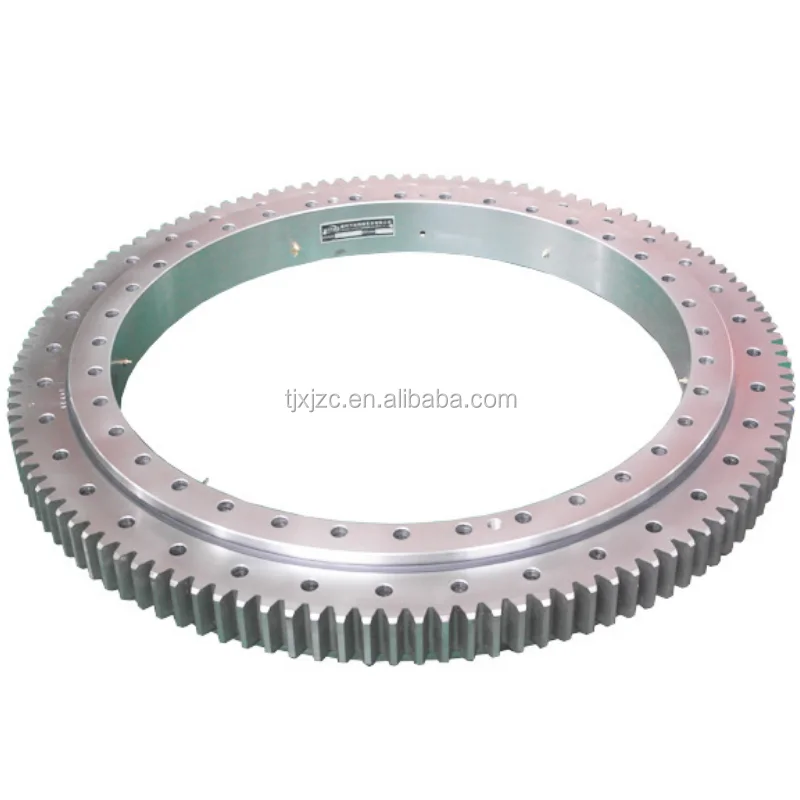

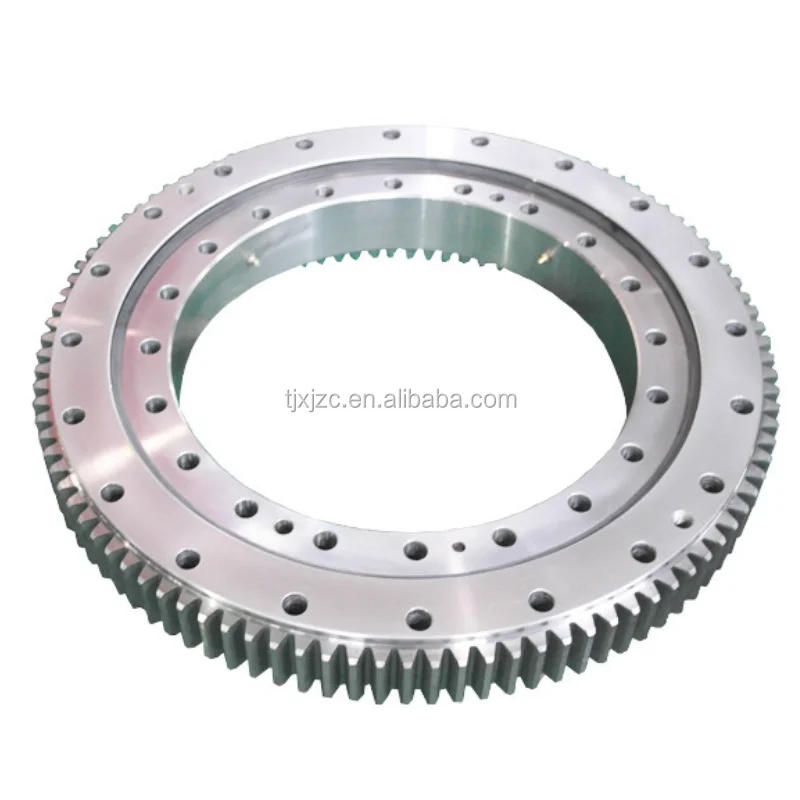

Photos for referece:

Rotary support slewing bearing inner or outer teeth mesa giratoria rodamiento
