rodamientos de rodillos H242649 - H242610 inch tapered roller bearing rodamiento h242649/h242610

  • 1 - 199 Units
    $572.00
  • >=200 Units
    $566.00
Bore Size:
206.375mm
Outside Diameter:
336.550mm
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(days) 2 Negotiable
Customization:
Customized packaging (Min. Order: 500 Units)
Graphic customization (Min. Order: 500 Units)

More

Customized logo (Min. Order: 500 Units) Less
Samples:
$572.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Structure:
Taper
Type:
Roller
Place of Origin:
USA
Brand Name:
USA
Model Number:
H242649/H242610 , H242649/H242610CD
Number of Row:
Single Row
Precision Rating:
P5 P3 P0
Seals Type:
open
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Energy & Mining
Product name:
rodamientos de rodillos H242649 - H242610
Model:
H242649 - H242610 , H242649D/H242610 , H242649/10CD
Material:
gcr15 or stainless steel
Application:
Construction Machinery
Keywords:
Taper Rollerd Roller Bearings
Samples:
Avaliable
Stock:
Large Quantity
Feature:
Long Life High Speed
Bearing Name:
Imperial Taper Roller Bearing
Parts number:
H242649/H242610 , H242649/H242610CD ,
Supply Ability
Supply Ability:
10000 Set/Sets per Week H242649 H242610 rodamiento h242649/h242610
Packaging & Delivery
Packaging Details
1. Neutral Packing
apply anti-rust grease to the bearing + neutral plastic bag/tube/box + white/yellow neutral carton + pallet/wooden case + stretch film outside
2. Industrial Packing
apply anti-rust grease to the bearing + industrial kraft paper + carton + pallet/wooden case + stretch film outside
3.Standard Export Packing
apply anti-rust grease to the bearing + plastic color bag/plastics tube + color box + carton + pallet/wooden case + stretch film outside
4.As customer's exact requirement.
Port
tianjin/shenzhen port
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 100 >100
Est. Time(days) 2 To be negotiated
Product Description
rodamientos de rodillos H242649 - H242610 inch tapered roller bearing rodamiento h242649/h242610
H242649 - H242610, Tapered Roller Bearings - TS (Tapered Single) Imperial
Roller bearings H242649/H242610 , H242649/H242610CD , H242649 - H242610 , H242649D/H242610
H242649/10CD
Series
H242600
Cone Part Number
H242649
Cup Part Number
H242610
Design Units
Imperial
Bearing Weight
33.20 Kg 73.2 lb
Cage Type
Stamped Steel
d - Bore
206.375 mm , 8.1250 in
D - Cup Outer Diameter
336.550 mm , 13.2500 in
B - Cone Width
100.013 mm , 3.9375 in
C - Cup Width
77.788 mm, 3.0625 in
T - Bearing Width
98.425 mm, 3.8750 in
Abutment and Fillet Dimensions
R - Cone Backface "To Clear" Radius1
3.300 mm, 0.13 in
r - Cup Backface "To Clear" Radius2
3.3 mm, 0.130 in
da - Cone Frontface Backing Diameter
227.08 mm , 10.04 in
db - Cone Backface Backing Diameter
230.89 mm , 9.09 in
Da - Cup Frontface Backing Diameter
317.80 mm , 12.52 in
Db - Cup Backface Backing Diameter
306.07 mm , 12.05 in
Ab - Cage-Cone Frontface Clearance
3 mm , 0.12 in
Aa - Cage-Cone Backface Clearance
10.4 mm , 0.41 in
a - Effective Center Location3
-25.4 mm , -0.01 in

Tapered Roller Bearings

Tapered roller bearing,Rodamiento de rodillos cónicos  is a radial thrust type rolling bearing in which the rolling elements are tapered rollers. There are two kinds of small cone angle and large cone angle. The small cone angle mainly bears radial and axial combined loads mainly based on radial load. It is often used in double and reverse installation. The inner and outer races can be installed separately. The radial and axial clearance can be adjusted during installation and use. The large cone angle is mainly subjected to axial and radial combined loads mainly based on axial loads. Generally, it is not used alone to withstand pure axial loads. When paired configuration (relatively installed at the same name), it can be used to withstand pure radial loads. Tapered roller bearings are separate bearings, and the inner and outer rings of the bearing have tapered raceways. This type of bearing is divided into different structural types such as single row, double row and four row tapered roller bearings according to the number of rows of rollers installed. Single row tapered roller bearings can withstand radial loads and axial loads in a single direction. When the bearing is subjected to a radial load, an axial component will be generated, so that another bearing that can withstand the axial force in the opposite direction is needed to balance.

Classification of tapered roller bearings
 According to the number of rows of rolling elements in the bearing, it is divided into single row, double row and four row tapered roller bearings. The clearance of the single-row tapered roller bearing needs to be adjusted by the user during installation; the double-row and four-row tapered roller bearing clearance has been given according to the user's requirements at the time of shipment from the factory, and no user adjustment is required. 1> A single row tapered roller bearing has an outer ring, an inner ring assembly of the inner ring and a set of tapered rollers comprised of a basket-shaped cage. The outer ring can be separated from the inner ring assembly. According to the ISO tapered roller bearing external dimensions, any standard type of tapered roller bearing outer ring or inner ring assembly should be able to achieve internationality with the same type of outer ring or inner ring assembly. exchange. That is, the outer ring of the same model must meet the requirements of ISO492 (GB307) in addition to the external dimensions and tolerances. The taper angle of the inner ring assembly and the diameter of the component cone must also comply with the relevant provisions of the interchange. Generally, the single-row tapered roller bearing outer ring raceway has a cone angle of 10° to 19°, and can simultaneously bear the combined effect of axial load and radial load. The larger the cone angle, the greater the ability to withstand axial loads. Large cone angle bearing, rear code plus B, cone angle between 25 ° ~ 29 °, it can withstand large axial loads. In addition, single row tapered roller bearings can adjust the clearance during installation. 2> The outer ring (or inner ring) of the double row tapered roller bearing is a whole. The two inner rings (or outer rings) have similar small end faces, and there are bearing spacers in the middle. The clearance is adjusted by the thickness of the spacers. The thickness of the spacers can also be used to adjust the pre-interference of the double-row tapered roller bearings. 3> Four-row tapered roller bearings, the performance of this type of bearing is basically the same as that of double-row tapered roller bearings, but the radial load is larger than that of double-row tapered roller bearings, and the limit speed is slightly lower, mainly used for heavy machinery. . 4>Multi-sealed double and four-row tapered roller bearings, long-life, multi-sealed double and four-row tapered roller bearings. Personalized new design of the bearing, changing the traditional design method of the fully sealed bearing, adopting a new sealing structure type combining sealing and dustproof, improving the sealing effect and improving the sealing performance. Multi-sealed double and four-row tapered roller bearings have a 20% to 40% increase in life compared to open-frame bearings; lubricant consumption is reduced by 80%.

Application of of tapered roller bearing

rodamientos de rodillos H242649 - H242610 inch tapered roller bearing rodamiento h242649/h242610

Tapered roller bearing circle is usually of a separate type, that is, the conical inner ring assembly consisting of the inner ring with the roller and the cage assembly can be mounted separately from the conical outer ring (outer ring). Tapered roller bearings are usually of a separate type, that is, a conical inner ring assembly consisting of an inner ring with a roller and a cage assembly can be mounted separately from the outer bevel (outer ring).


Tapered roller bearings are widely used in automobiles, rolling mills, mining, metallurgy, plastic machinery, sedimentation tanks, dry powder mixing equipment, digital printing machines, non-blocking pumps, impact testing machines, manual welding machines, non-woven machinery, needle testing equipment, Filling machinery, cooking equipment, machine guards, iron removers, panel towers, concrete pump trucks, pre-treatment equipment, bronzing machines, screw pumps, rubber calenders, etc.

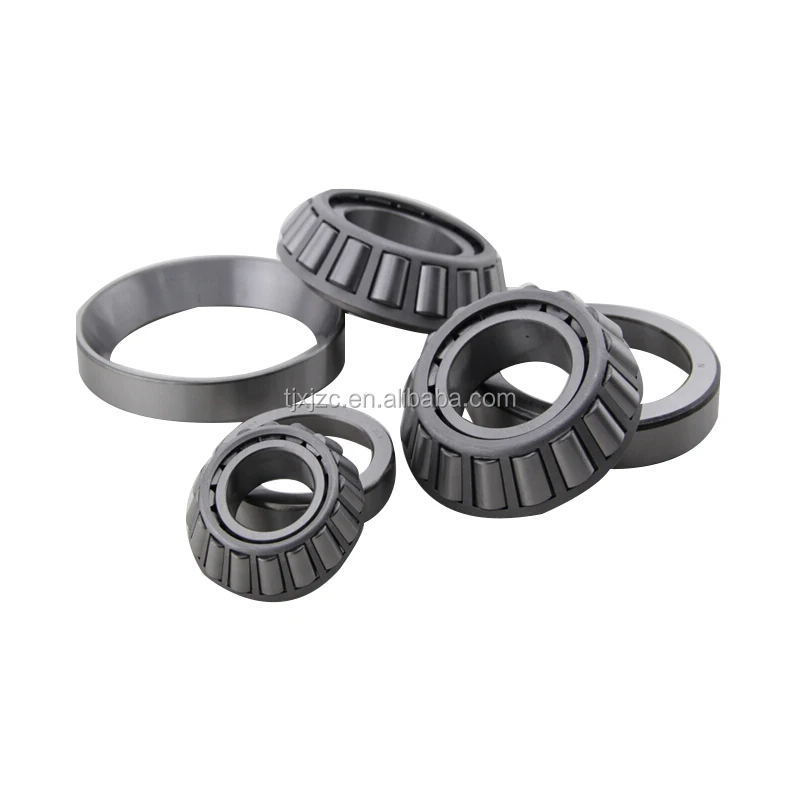

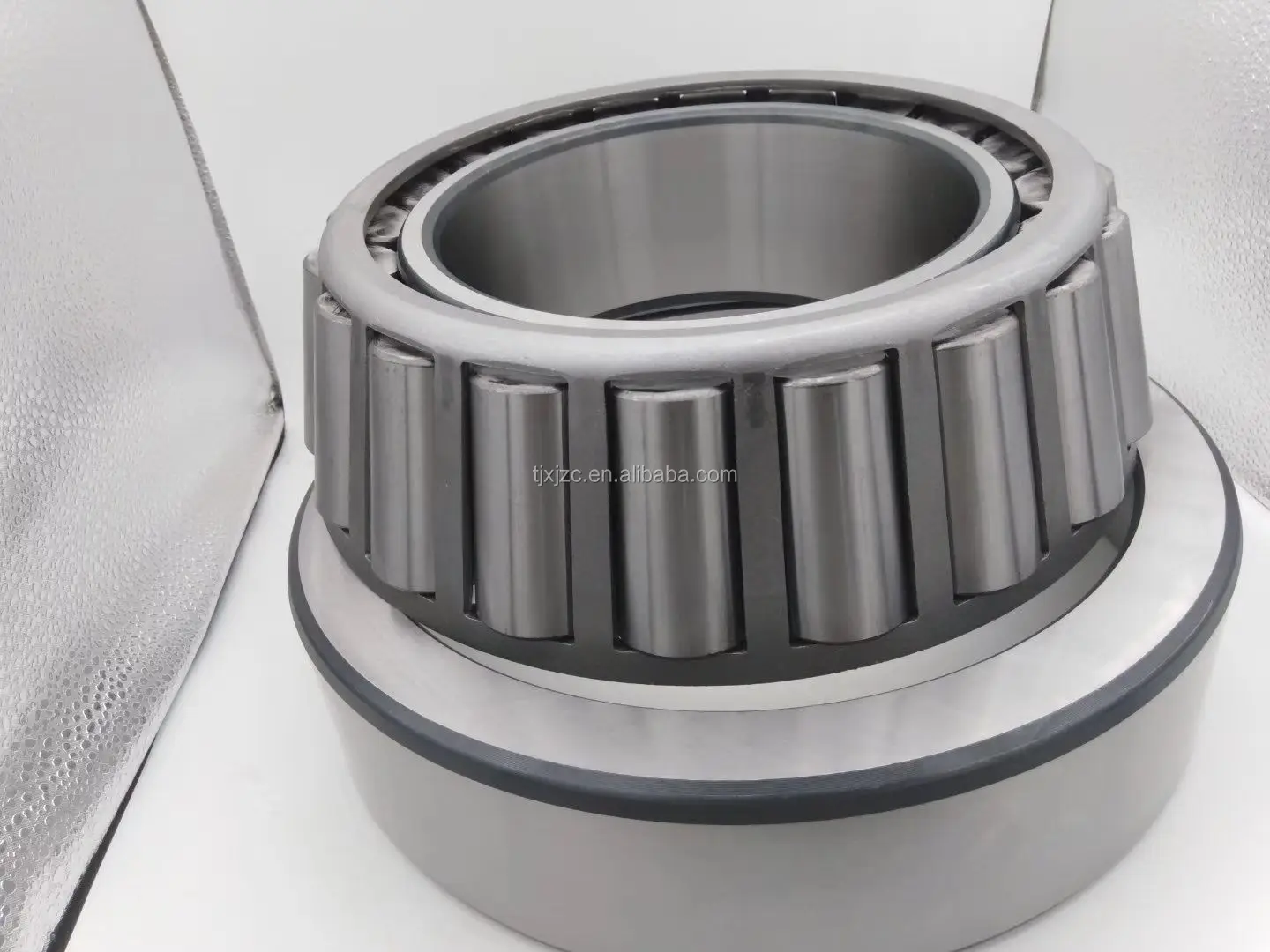

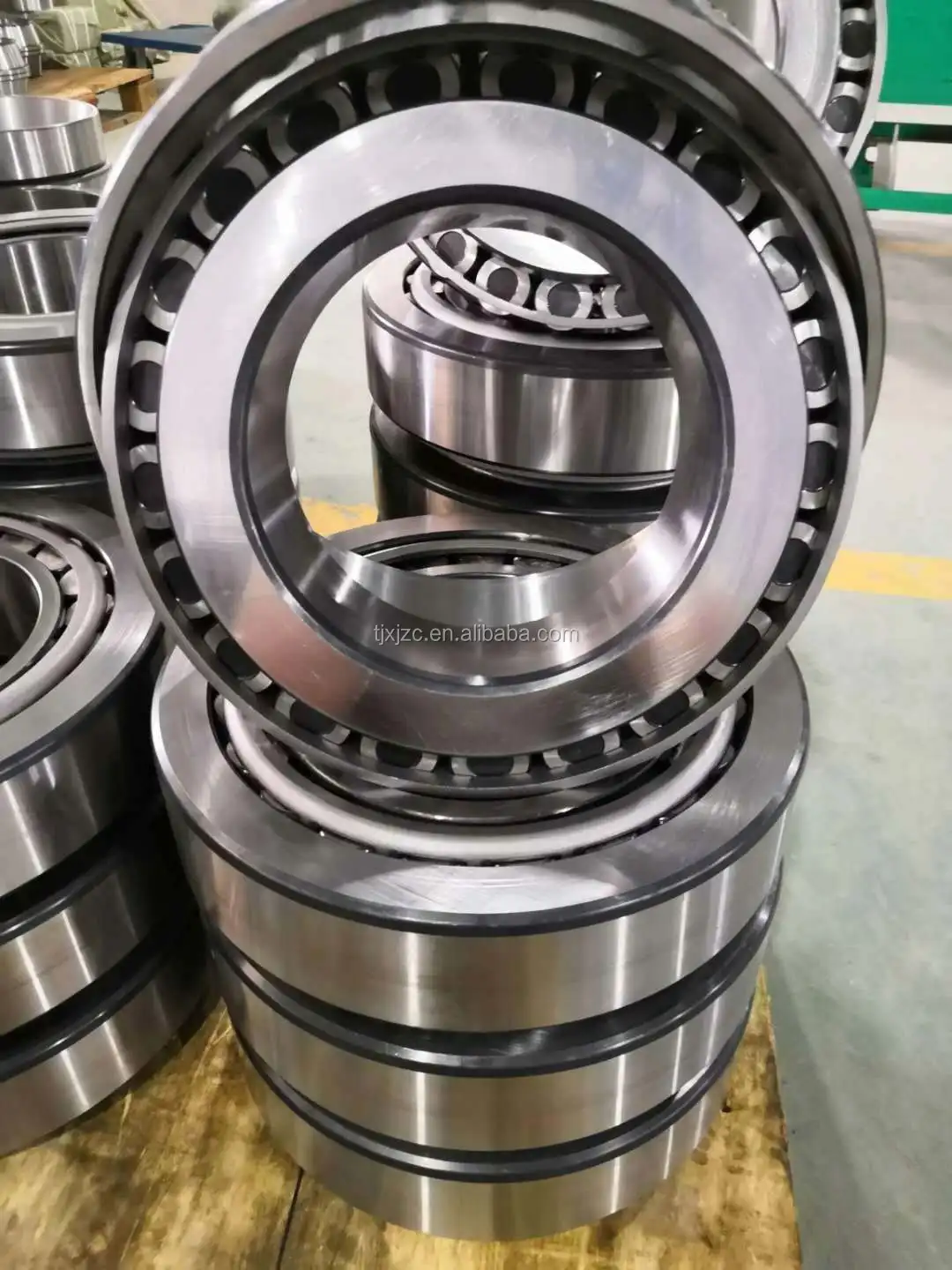

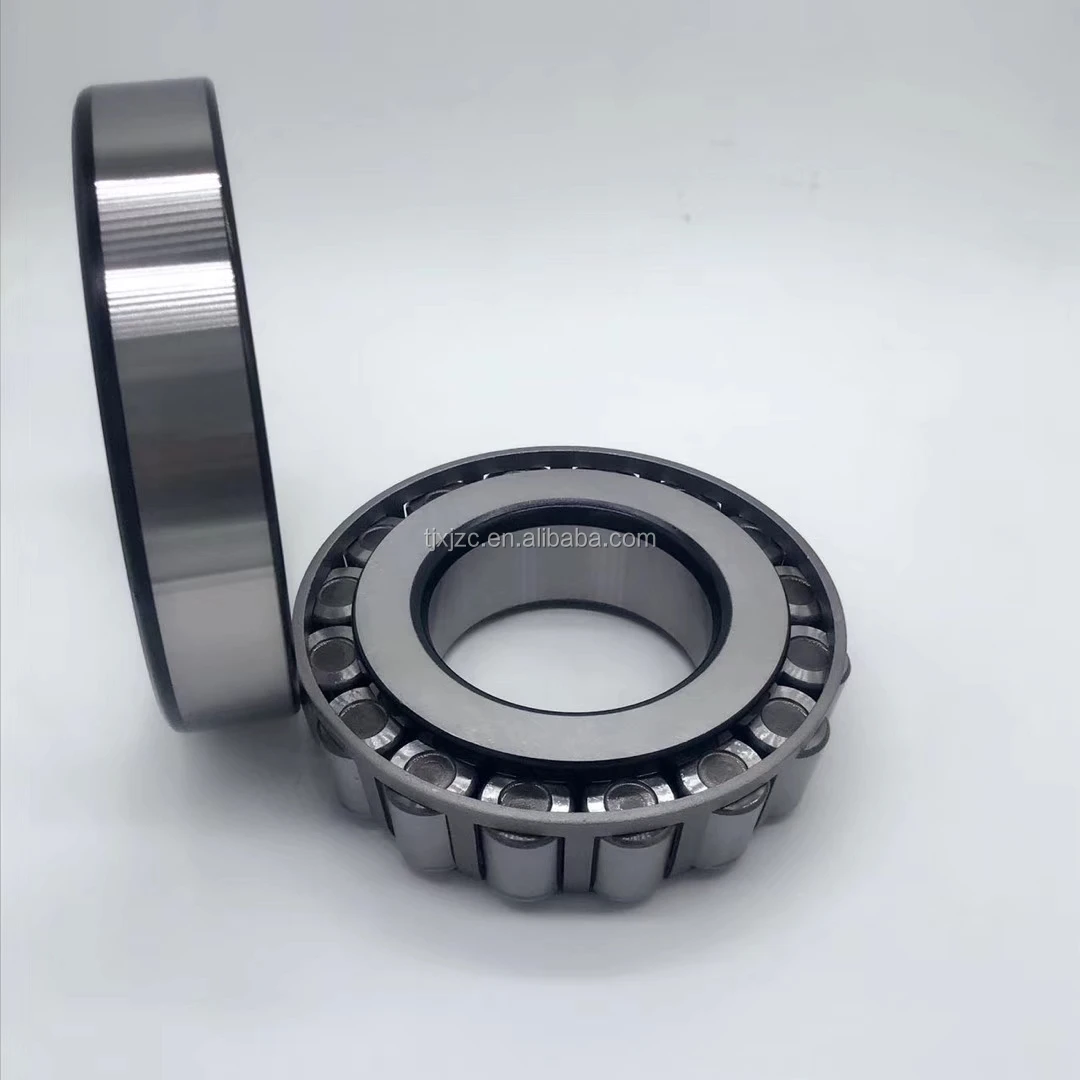

Products Show

Except rodamientos de rodillos H242649 - H242610 inch tapered roller bearing rodamiento h242649/h242610 , here below are some recommandations:

Tapered roller Bearing Designation
688TD/672
LM637349NW/LM637310D
HM259045TD/HM259010
450900D-451212
LM286449D-LM286410
K687/K672D
M238849D/M238810/M238810CD
EE291250/291751CD
46791DW-46720
EE547341D-547480
NA691/672D
M238849/M238810CD
LM258648DGW/LM258610
67790D 67720
LM286749D-LM266711
861/854D
87737/87112D
HM259049/HM259010CD
82681D-82620
EE634656D-834510
98400/98710D
H239649/239612CD
HM259049D/HM259010
94706D-94/13
LM287649D-LM287610
98400/98789D
NA67885SW/67820D
H961649/H961610CD
HM237546D-HM2375/0
LM287849AD-LM287810
HM120848/HM120817XD
87750/87112D
H961649/H961610D
EE280700D-281200
LM288249D-LM288210
HH221449/HH221410D
93750/93127CD
EE720128/720236D
M238849D M2388/0
LM288949D-LM288910
941/932CD
EE420751/EE421451CD
EE161300/161901CD
H239649D H239610
688TD-672
HH224335/HH224310CD
HH840249/HH840210D
EE526130/EE526191D
67885DW 67820
HH221449TD-HH221410
782/774D
HH840249/HH840210DF
L860049/L860010CD
EE420750D-421437
71457TD-71750
56418/56650D
87762/87112D
HM261049/HM261010CD
93800D-93125
48290TD-48220
L521949/L521910D
L540049/L540010D
H263949/H263910D
EE420800D 421437
67396TD-67322
37425/37626D
LM739749/LM739710CD
HH264149/HH264110CD
H242649D-H242610
74539TD-74656
56425/56650D
M241543/M241510CD
LM961548/LM961511D
LM742749DW LM7427/0
48685TD-48620
NA56425SW/56650D
93787/93127CD
EE971354/972102D
H244849D H244810
82581TD-82950
71425/71751D
H247535/H247510CDXA
LM761649DW/LM761610D
M244249DW M244210
99600TD-99100
HH224340/HH224310CD
EE420801/421451CD
HM262749D/HM262710
LM245149DW-LM245110
H234649TD-H234616
37430/37626D
LM241149/LM241110D
EE161363/161901CD
EE529091D-529157
94713TD-94113
LM522549/522510D
67983/67920CD
HM262749/HM262710CD
EE821096D-821165
82785TD-82720
64433/64700D
M541349/M541310CD
M262449DW/M262410
EE127097DW-127135
EE420750TD-421437
H924045/H924010D
LM241149NW/LM241110D
EE333137/333203CD
LM247748D-LM247710
67980TD-67920
HH924349/HH924310D
93800/93127CD
L163149/L163110CD
EE126096D-126150
93826TD-93125
L623149/L623110D
M241547/M241510CD
EE161400/161901CD
HH249949D-HH24991O
M249746TD-M249710
64450/64700D
EE420800D/421450
EE231400/231976CD
M249748D-M249710
LM451349TD-LM451310
