high temperature resistance ball bearing 6302-2rs rolamento 6302
-
20 - 59 Units
$0.18
-
>=60 Units
$0.16
- Brand Name:
- CHINA/Other import brand
- Outside Diameter:
- 42mm
- Lead Time:
-
Quantity(Units) 1 - 20 >20 Est. Time(days) 2 Negotiable
- Customization:
-
Customized packaging (Min. Order: 200 Units)Graphic customization (Min. Order: 500 Units)
More
Customized logo (Min. Order: 50 Units) Less
- Samples:
- Structure:
-
Deep Groove
- Type:
-
Ball
- Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
- Bore Size:
-
15 mm
- Model Number:
-
6302-2rs 6302 6302zz
- Precision Rating:
-
P0 P4
- Seals Type:
-
rubber/open type/iron sealed
- Number of Row:
-
Single Row
- Place of Origin:
-
China (Mainland)/import
- Product name:
-
high temperature resistance ball bearing 6302-2rs rolamento 6302
- Service:
-
OEM/ODM Customized
- Package:
-
Original Package
- Material:
-
Bearing Steel Gcr15
- Feature:
-
Long Life High Speed
- Brand:
-
china /import
- Bearing Material:
-
Bearing Steel\Gcr15
- model:
-
rolamento 6302
- Cage material:
-
Chrome Steel Cage
- Precision:
-
P0 P6 P2 P4 P5
- Supply Ability:
- 100000 Set/Sets per Week
- Packaging Details
- rolamento 6302:1.Use thicker cartons ,Can prevent bearing collision damage
2. Multilayer Thickened Plastic Film Inside Carton,
can prevent the phenomenon of wet water intake.
3.In large quantities, packed in wooden boxes
4.Customize brand and typing according to customer's requirements
- Port
- rolamento 6302:tianjin port , shenzhen port.Customer-designated ports
- Lead Time :
-
Quantity(Units) 1 - 20 >20 Est. Time(days) 2 To be negotiated
product name | high temperature resistance ball bearing 6302-2rs rolamento 6302 | ||||
seal type | Open, Z, ZZ, RZ,2RZ,RS, 2RS | ||||
quality standard | ISO9001:2000 standard | ||||
other series models | 1) 6000 series: 604.605.606.607.608.609.6000.6001.6002.6003.6004.6005.6006.6007.6008.6009.6010.6011.6012 2) 6200 series: 624.625.626.627.628.629.6200.6201.6202.6203.6204.6205.6206.6207.6208.6209.6210.6211.6212 3) 6300 series: 634.635.636.637.638.639.6300.6301.6302.6303.6304.6305.6306.6307.6308.6309.6310.6311.6312 4) 6400 series: 6403.6404.6405.6406.6407.6408.6409.6410.6411.6412.6413.6414.6415.6416.6417.6418.6419.6420 5) 6700 series: 673.674.675.676.677.678.679.6700.6701.6702.6703.6704.6705 6) 6800 series: 685.686.687.688.689.6800.6801.6802.6803.6804.6805.6806.6807.6808.6809.6810.6811.6812 7) 6900 series: 695.696.697.698.699.6900.6901.6902.6903.6904.6905.6906.6907.6908.6909.6910.6911.6912 8)16000 series: 16001.16002.16003.16004.16005.16006.16007.16008.16009.16010.16011.16012.16013.16014.16015 | ||||
Service | OEM/ODM service | ||||
delivery time | 1.stock product :whthin 5-7days 2.7-30 days according to large quantity and design | ||||
package | industrial package and according to the customer requirement 1.Industrial packing: plastic bag+ carton plywood pallet 2.plastic bag+ white box+carton+plywood pallet 3.commercial packing: plastic bag+color box+carton +plywood pallet | ||||
advantage | Low friction ,Long service life ,Enhanced operational reliability ,Consistency of roller profiles and sizes ,Rigid bearing application,Running-in period with reduced temperature peaks ,Separable and interchangeable |

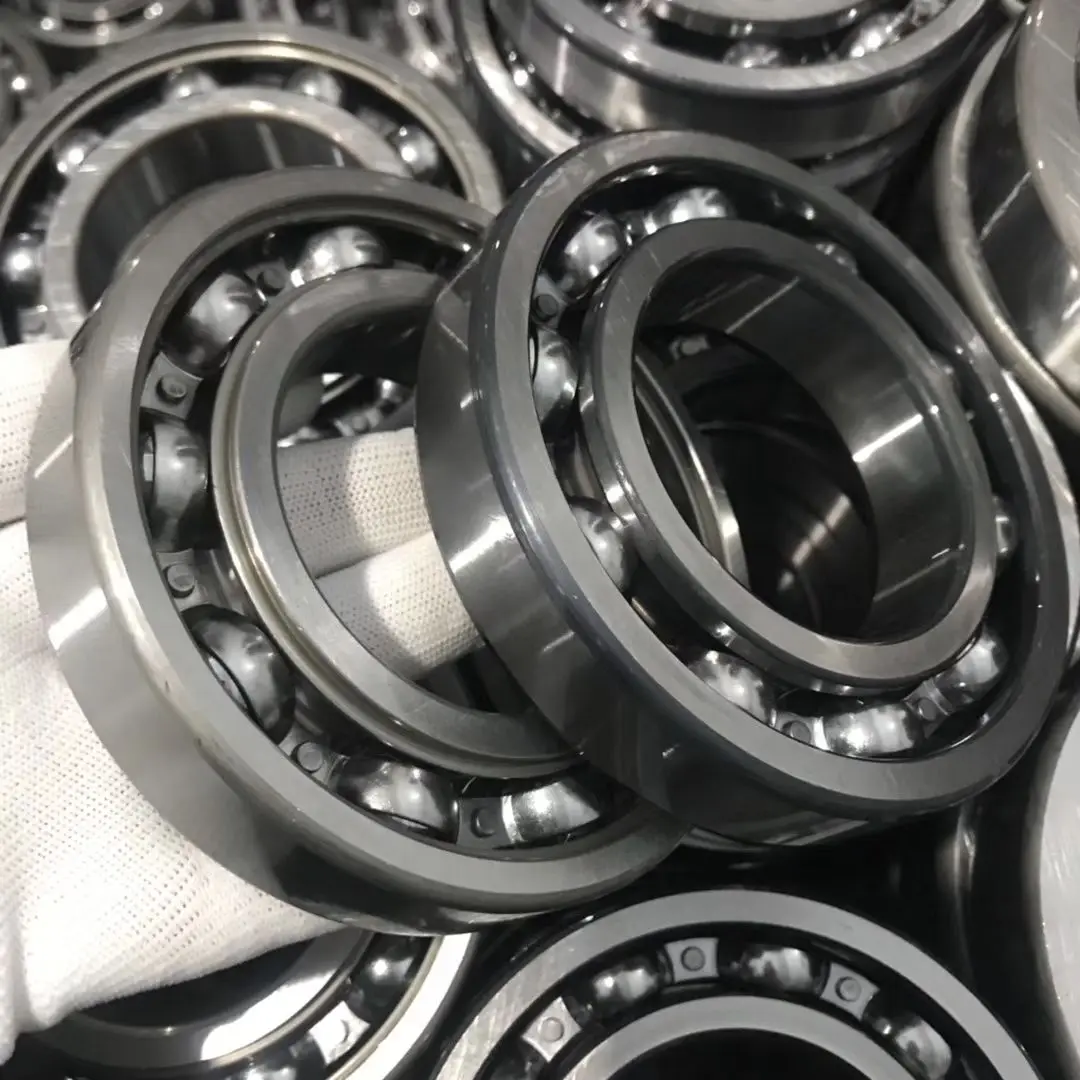

high temperature resistance ball bearing 6302-2rs rolamento 6302
Deep Groove Ball Bearings Description
Deep groove ball bearings (GB/T 276-1994), also known as single row radial ball bearings, are the most widely used rolling bearings. It is characterized by low frictional resistance and high rotational speed. It can be used on parts with radial load or combined load of radial and axial action. It can also be used on parts with axial load, such as small power motors. Automobile and tractor gearboxes, machine tool gearboxes, general machines, tools, etc.

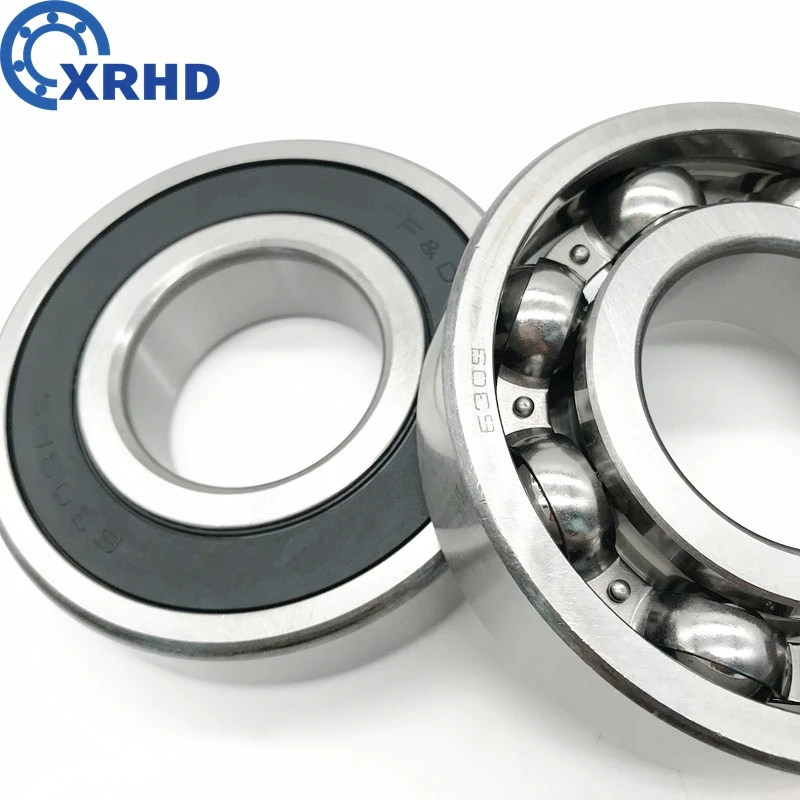

high temperature resistance ball bearing 6302-2rs rolamento 6302

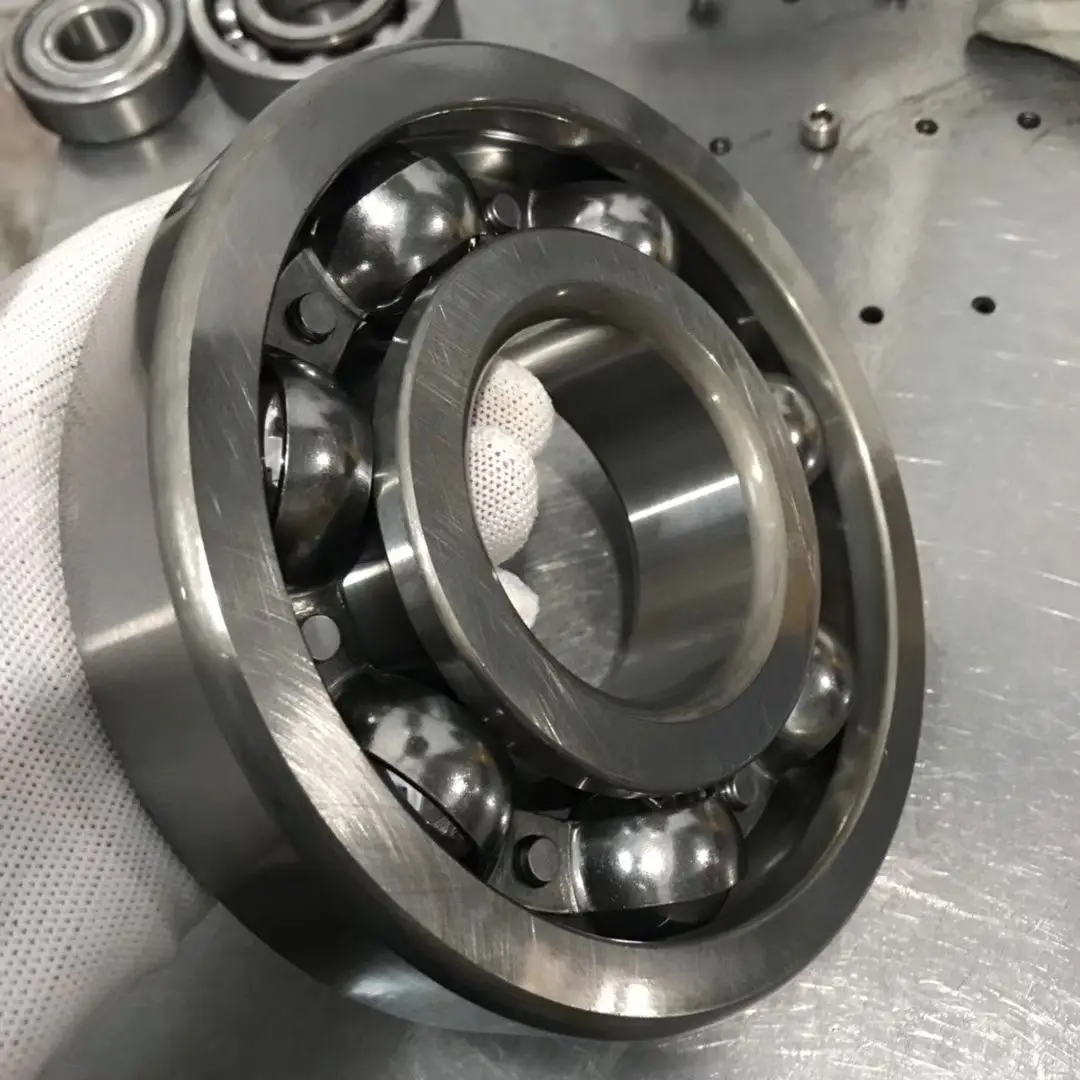

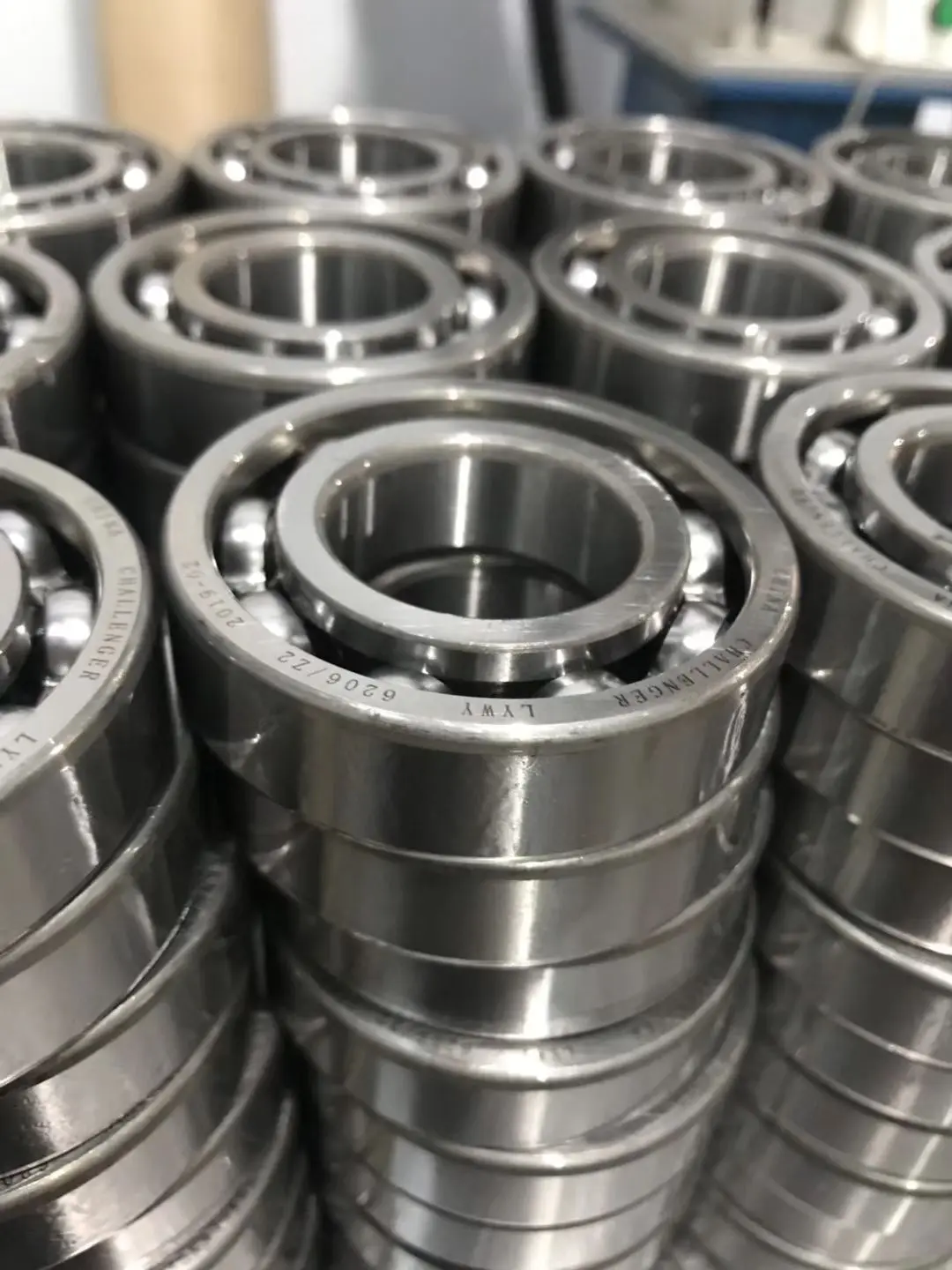

The basic deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set
of cages. There are two types of deep groove ball bearings: single row deep groove ball bearing and double row deep groove ball bearing.

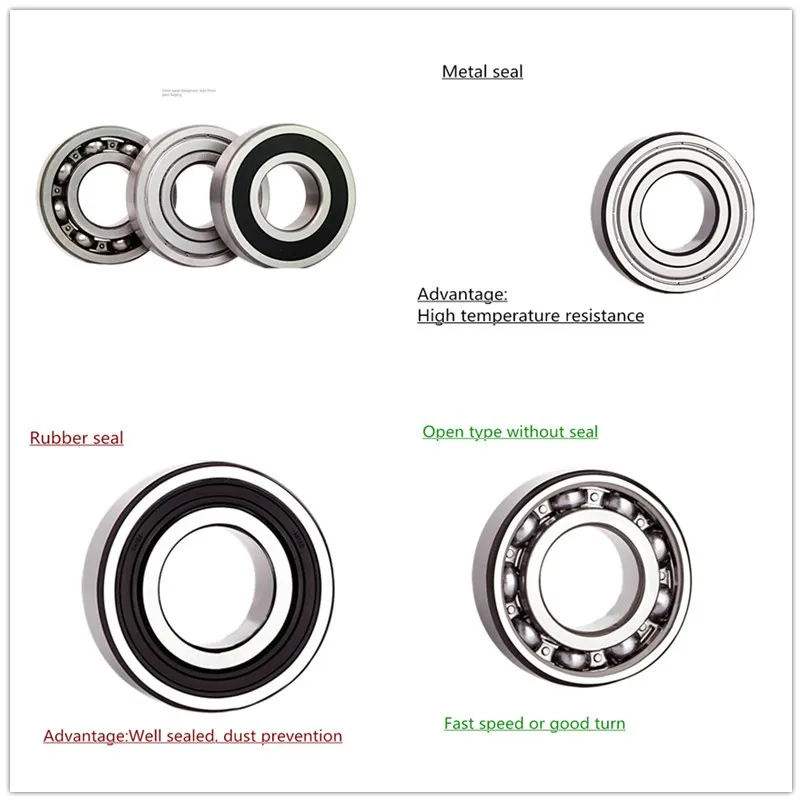

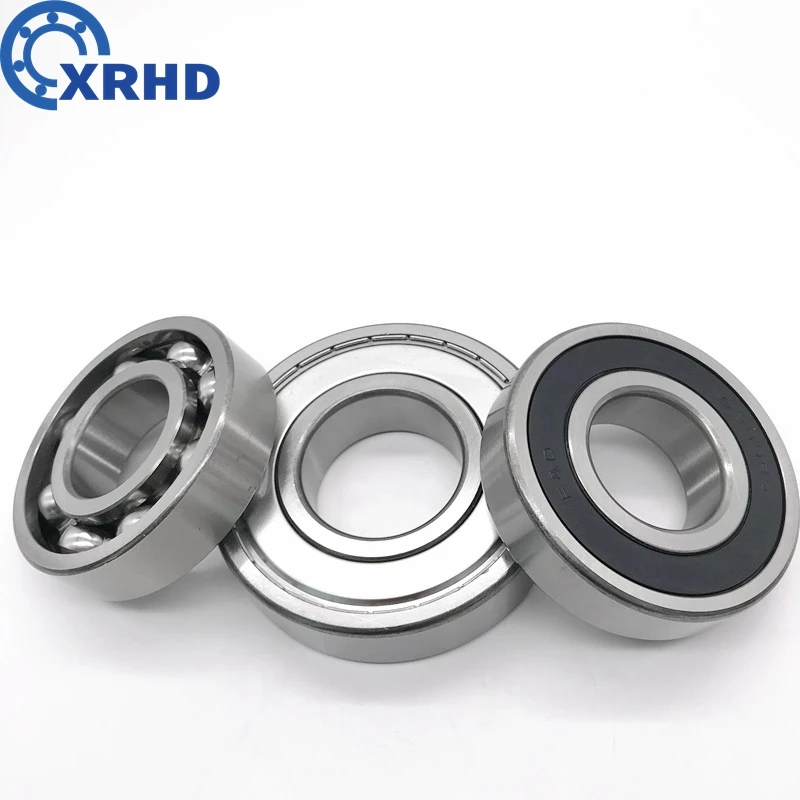

Deep groove ball is divided into two types: sealed and open. The open type means that the bearing does not have a sealing structure. The sealed deep groove ball is divided into dustproof seal and oil proof. seal. The dust seal cover material is stamped from steel plate, which is simple to prevent dust from entering the bearing raceway. The oil-proof type is a contact type oil seal, which can effectively prevent the grease from overflowing inside the bearing.

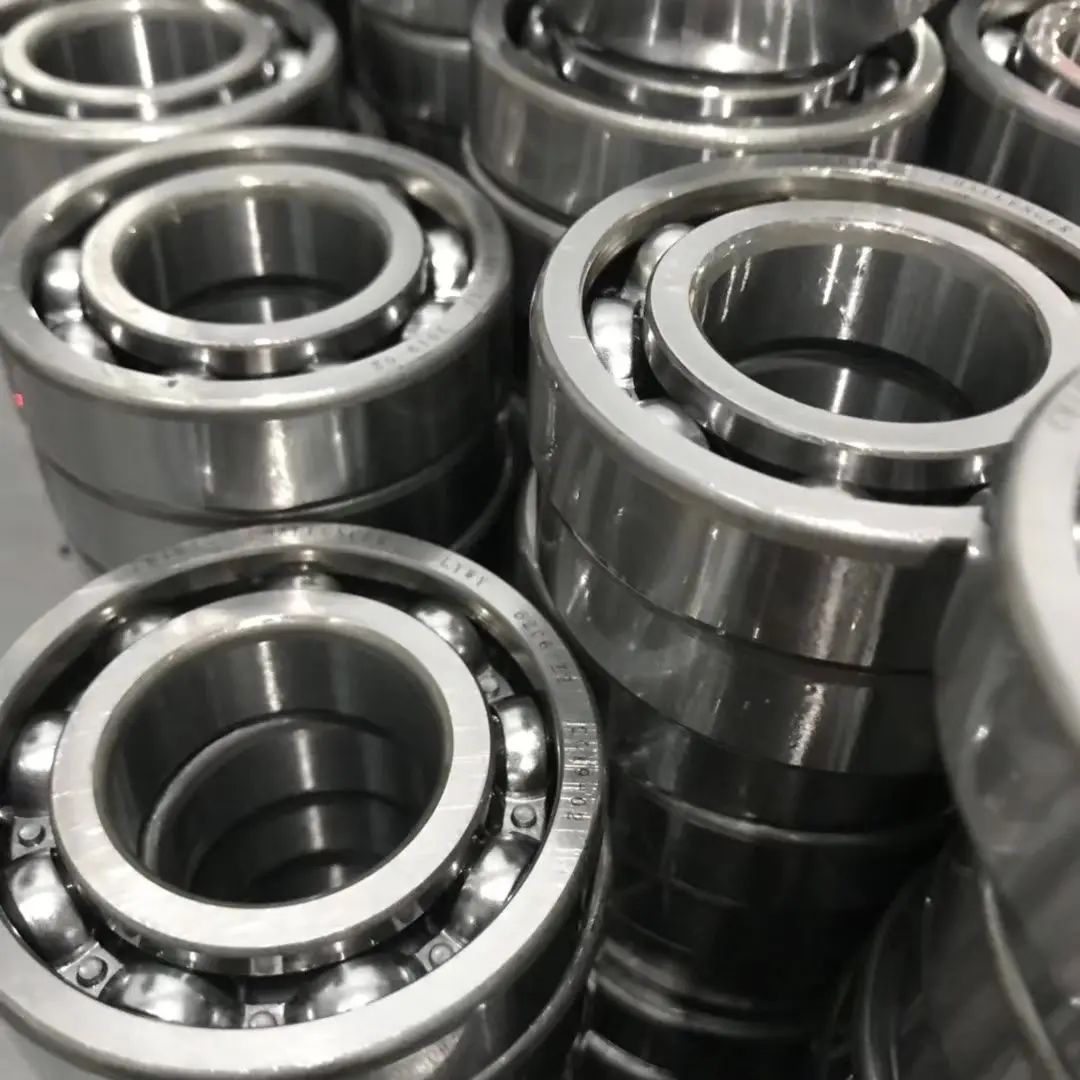

high temperature resistance ball bearing 6302-2rs rolamento 6302

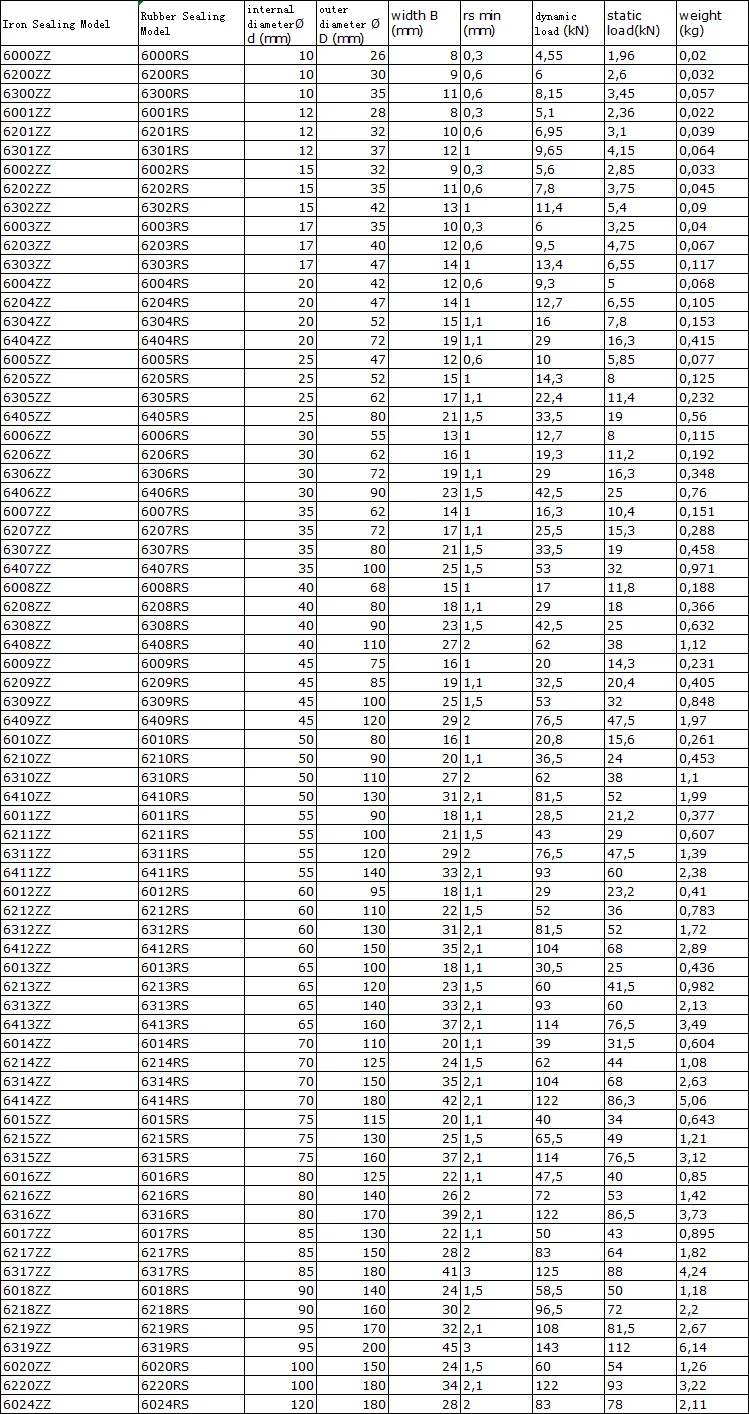

Iron Sealing Model | Rubber Sealing Model | internal diameterØ d (mm) | outer diameter Ø D (mm) | width B (mm) | rs min (mm) | dynamic load (kN) | static load(kN) | weight(kg) |
6000ZZ | 6000RS | 10 | 26 | 8 | 0,3 | 4,55 | 1,96 | 0,02 |
6200ZZ | 6200RS | 10 | 30 | 9 | 0,6 | 6 | 2,6 | 0,032 |
6300ZZ | 6300RS | 10 | 35 | 11 | 0,6 | 8,15 | 3,45 | 0,057 |
6001ZZ | 6001RS | 12 | 28 | 8 | 0,3 | 5,1 | 2,36 | 0,022 |
6201ZZ | 6201RS | 12 | 32 | 10 | 0,6 | 6,95 | 3,1 | 0,039 |
6301ZZ | 6301RS | 12 | 37 | 12 | 1 | 9,65 | 4,15 | 0,064 |
6002ZZ | 6002RS | 15 | 32 | 9 | 0,3 | 5,6 | 2,85 | 0,033 |
6202ZZ | 6202RS | 15 | 35 | 11 | 0,6 | 7,8 | 3,75 | 0,045 |
6302ZZ | 6302RS | 15 | 42 | 13 | 1 | 11,4 | 5,4 | 0,09 |
6003ZZ | 6003RS | 17 | 35 | 10 | 0,3 | 6 | 3,25 | 0,04 |
6203ZZ | 6203RS | 17 | 40 | 12 | 0,6 | 9,5 | 4,75 | 0,067 |
6303ZZ | 6303RS | 17 | 47 | 14 | 1 | 13,4 | 6,55 | 0,117 |
6004ZZ | 6004RS | 20 | 42 | 12 | 0,6 | 9,3 | 5 | 0,068 |
6204ZZ | 6204RS | 20 | 47 | 14 | 1 | 12,7 | 6,55 | 0,105 |
6304ZZ | 6304RS | 20 | 52 | 15 | 1,1 | 16 | 7,8 | 0,153 |
6404ZZ | 6404RS | 20 | 72 | 19 | 1,1 | 29 | 16,3 | 0,415 |
6005ZZ | 6005RS | 25 | 47 | 12 | 0,6 | 10 | 5,85 | 0,077 |
6205ZZ | 6205RS | 25 | 52 | 15 | 1 | 14,3 | 8 | 0,125 |
6305ZZ | 6305RS | 25 | 62 | 17 | 1,1 | 22,4 | 11,4 | 0,232 |
6405ZZ | 6405RS | 25 | 80 | 21 | 1,5 | 33,5 | 19 | 0,56 |
6006ZZ | 6006RS | 30 | 55 | 13 | 1 | 12,7 | 8 | 0,115 |
6206ZZ | 6206RS | 30 | 62 | 16 | 1 | 19,3 | 11,2 | 0,192 |
















Tianjin Xurui Hengda International Trade Co., Ltd., as an import and export organization, is a professional company engaged in the import and export of bearings, sales industry involves: metallurgy, power, steel, machine tools, mining machinery, construction machinery, road construction machinery, railway areas, from the identification of the model, brand transformation, to the customer ordered by the right. It is sure to be installed. The use of reasonable maintenance of the warehouse, effective inventory management system, fast transportation and other aspects of security to provide customers with a full range of services.

warehouse


workshop
equipment workshop


office
photo with customer
Welcome to my alibaba store







one way clutch bearing
cross roller guide
.
cross roller bearing
linear bearing
ball screw and nut
linear guide slider
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge
Q. How long is the delivery time after order placed?
a. for goods in stock, can delivery within 1-2 days.
b. for goods which dont have stock, delivery time depends on model number and order qty.
Q. You provide free consultation service?
Yes, before, during and after order, anytime.
