HSR20A CNC Machine Parts LM Linear Friction Guideways With Slide Block carriages HSR20 HSR20AM

  • >=1 Units
    $20.00
Guide Width or Diameter:
15/23/28/34/45/53
Guide Length:
100mm or customized
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(days) 1 Negotiable
Customization:
Customized logo (Min. Order: 1000 Units)
Customized packaging (Min. Order: 1000 Units)

More

Graphic customization (Min. Order: 1000 Units) Less
Samples:
$25.00 /Units | 1 Units (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
6 Months
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Energy & Mining
Model Number:
HSR20 HSR20A HSR20AM HSR20LA
Place of Origin:
Japan
Brand Name:
Japan origianl
Material:
gcr15
machine too guideways:
HSR20-A HSR20-AM HSR20-LA HSR20-LAM
other similar model:
HSR20 HSR20A HSR20AM HSR20LA HSR20LAM
other models:
HSR15 HSR15A HSR20 HSR20A HSR20LA HSR25 HSR25A
series:
Models HSR-A, HSR-AM, Models HSR-LA and HSR-LAM
Product name:
full-ball type Linear Guideway Rail
Application:
Automatic EquipmentHigh Speed Transfer Device
Length:
Customized Length
Linear guide application:
CNC machine
Name:
Linear Guides bearing
Structure:
Linear Motion Guide Block carriages
Supply Ability
Supply Ability:
5000 Unit/Units per Week
Packaging & Delivery
Packaging Details
linear gude rail and carriages with standard export packing
Port
any port
Lead Time :
Quantity(Units) 1 - 100 >100
Est. Time(days) 1 To be negotiated
Product Description

HSR20A CNC Machine Parts LM Linear Friction Guideways With Slide Block carriages HSR20 HSR20AM

Linear guide system can be understood as a rolling guide. It consists of a guide rail and one or more than one of sliders. It is infinitely rolling the ball between the slider and the guide rail, so that the load platform can easily move linearly along the guide rail with high precision, and the friction coefficient can be reduced to one-fiftieth of the usual conventional sliding guide, which can be easily Achieve high positioning accuracy. The design of the final unit between the slider and the guide rail enables the linear guide rail to bear the load in all directions, such as up, down, left and right.

Linear guides, also known as line rails, slide rails, linear guides, and linear slide rails, are used for linear reciprocating motions and can withstand a certain amount of torque to achieve high-precision linear motion under high load conditions. Linear guides are called in the mainland. Taiwan is generally called linear guides and linear slides.

Slider - Turns motion from a curve to a straight line. The new rail system allows the machine to achieve fast traverse speeds. At the same spindle speed, rapid traverse is a linear guide. Linear guides, like flat guides, have two basic components; one for the fixed component and the other for the moving component.

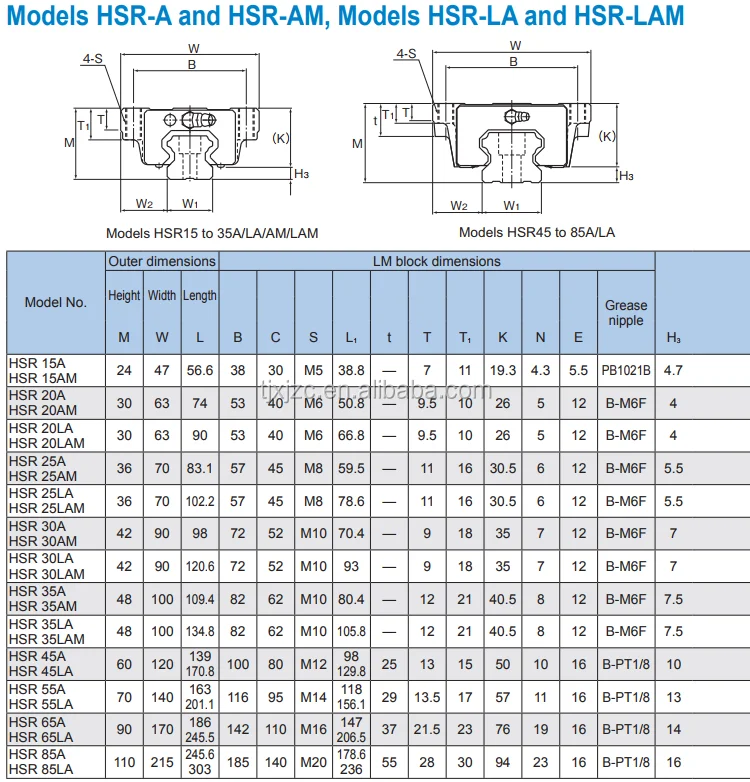

Types or Dimensions

HSR series blocks and sliding guide rails

Below items can be sold block only or can also be sold with matched sliding gudie rail at standard length or at what length you want. will provide goods just as your derail requirements

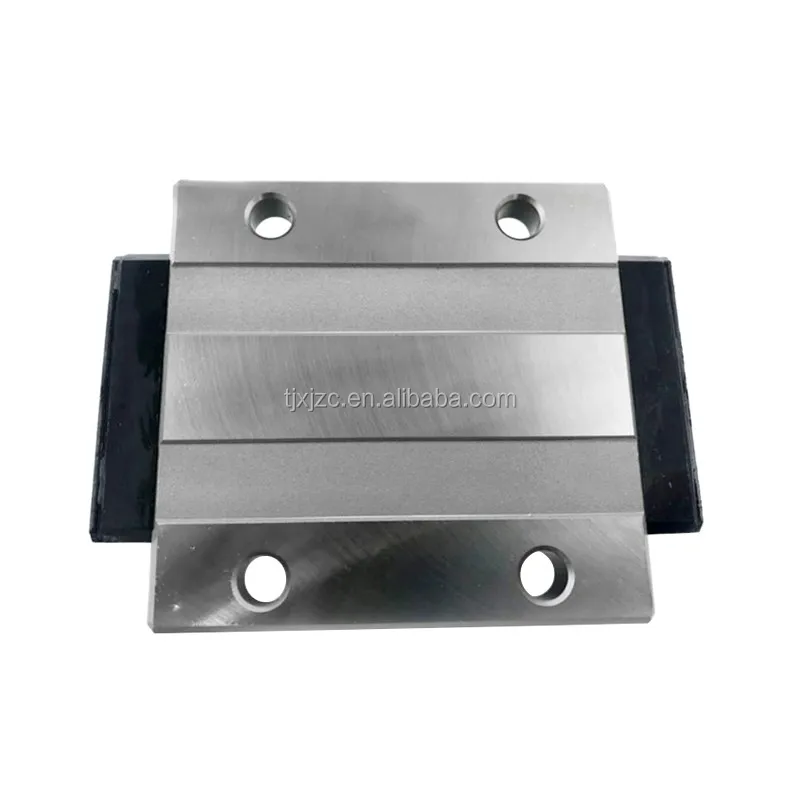

Product show

Global standard size LM Guiderail, series, HSR in which each row of balls is placed at a contact angle of 45° so that the rated loads applied to the LM block are uniform in the four directions (radial, reverse radial and lateral directions), enabling the LM Guide to be used in all orientations.

Other series we have

Except HSR-A and HSR-LA, models as below

HSR15A HSR25A HSR35A HSR55A  HSR15AM HSR25AM HSR35AM HSR55LA HSR20A HSR25LA HSR35LA

HSR65A HSR20AM HSR25LAM HSR35LAM HSR65LA HSR20LA HSR30A HSR45A HSR85A HSR20LAM

HSR30AM HSR45LA HSR85LA  HSR30LA HSR30LAM

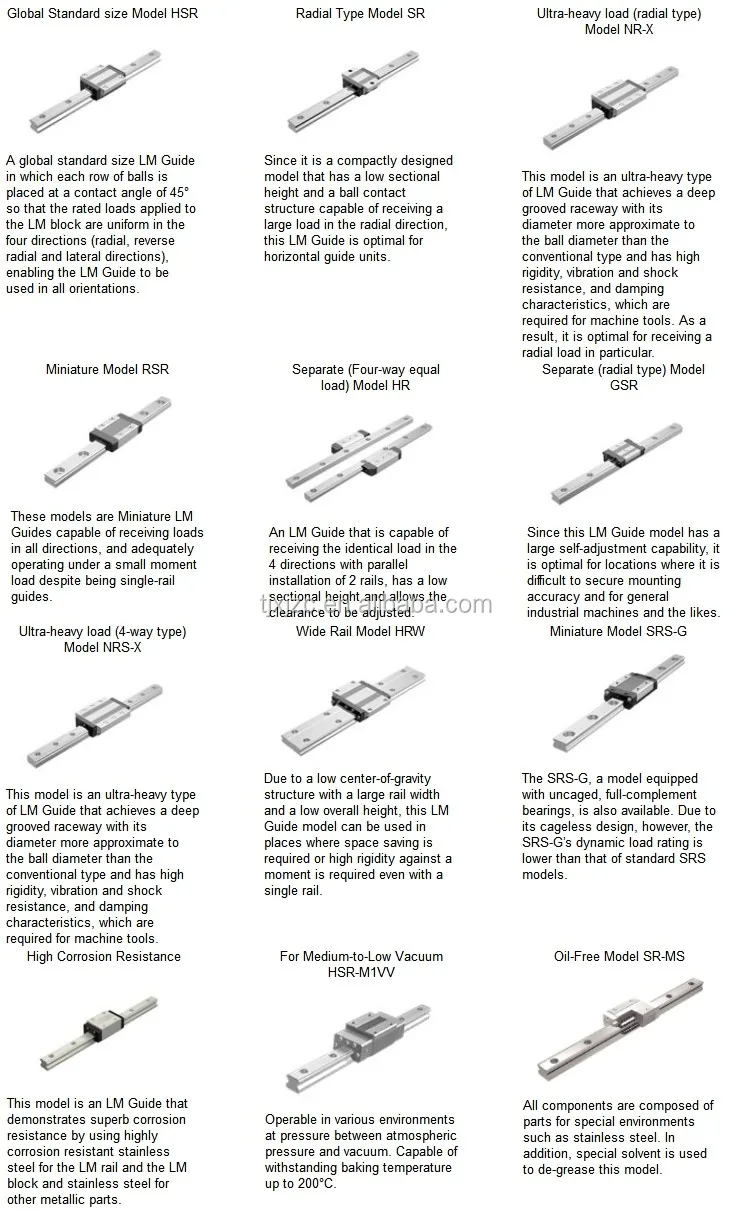

We also have below series linear rail guide with bearing blocks:
