FSU2005DC085-GC3-400 super quality left thread ball screw manufacture

FOB Reference Price:Get Latest Price
$280.00 - $300.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 2 >2
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 2 Units)
Customized packaging (Min. Order: 2 Units)

More

Graphic customization (Min. Order: 2 Units) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
taiwan and other famous brand
Model Number:
FSU2005DC085-GC3-400
Material:
Bearing Steel
Length:
Custom Length
Manufacturing Process:
Milled Thread
model:
Customized Length
item:
ball screw FSU2005DC085-GC3-400
ball screw:
SFU1605 - L 2650mm RM1605 Ball screw Ball nut for CNC and BK12 / BF12
Thread direction:
Right Thread
material:
bearing steel
model 1:
standard processing ball screw SFU1605
ball type screw:
SFU1605 SFU2005 SFU2510 SFU3210 SFU4010 SFU5010 SFU6310 SFU8010
super precision screw:
SFU1605 SFU2005 SFU2504 FSU2005DC085-GC3-400
Size of screw shaft:
12/16/20/25/32/40/50/63
Application:
3D Printer/CNC Machine FSU2005DC085
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
standard packing
Port
any port
Lead Time :
Quantity(Units) 1 - 2 >2
Est. Time(days) 7 To be negotiated



Product Description





>>>>>>>Ball Screw  FSU2005DC085-GC3-400



A ball screw is a mechanical linear actuator that translates rotational motion to linear motion with little friction. A threaded shaft provides a helical raceway for ball bearingswhich act as a precision screw. As well as being able to apply or withstand high thrust loads, they can do so with minimum internal friction. They are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. The ball assembly acts as the nut while the threaded shaft is the screw. In contrast to conventional leadscrews, ballscrews tend to be rather bulky, due to the need to have a mechanism to re-circulate the balls.



We can provide a complete selection of products and variations. Whether you need a unique custom design for a demanding application or a standard off-the-shelf product offering ease of design and shorter lead times, we have the solution from miniature to ultra-large sizes, for machine tools, injection molding machines, and general machinery as well as for use in special environments, such as semiconductor and LCD production equipment.


>>>>>>>Advantages
Low friction in ball screws yields high mechanical efficiency compared to alternatives. A typical ball screw may be 90 percent efficient, versus 20 to 25 percent efficiency of an Acme lead screw of equal size. Lack of sliding friction between the nut and screw lends itself to extended lifespan of the screw assembly (especially in no-backlash systems), reducing downtime for maintenance and parts replacement, while also decreasing demand for lubrication. This, combined with their overall performance benefits and reduced power requirements, may offset the initial costs of using ball screws.





Part No.

Screw diameter

PH

Ball

n

D



D3

D4

H

B

L

L(D)

DM

D5

SFU1204-3

12

4

2.381

3

22

42

32

36

8

36



6

4.7

SFU1605-3

16

5

3.175

3

28

48

38

40

10

44

85

6

5.5

SFU2005-3

20

5

3.175

3

36

58

47

44

10

44

85

6

6.6

SFU2505-3

25

5

3.175

3

40

62

51

48

10

44

85

6

6.6

SFU2005-4

20

5

3.175

4

36

58

47

44

10

44



6

6.6

SFU2505-4

25

5

3.175

4

40

62

51

48

10

50



6

6.6

SFU3205-4

32

5

3.175

4

50

80

65

62

12

52

98

6

9

SFU4005-4

40

5

3.175

4

63

93

78

70

15

55



6

9

SFU1610-3

15.3

10

3.175

3

28

48

38

40

10

45



6

5.5

SFU2010-3

20

10

3.175

3

36

58

47

44

10

45



6

6.6

SFU2510-3

25

10

4.763

3

40

62

51

48

10

71



6

6.6

SFU2510-4

25

10

4.763

4

40

62

51

48

10

83



6

6.6

SFU3210-4

32

10

6.35

4

50

80

65

62

12

90



6

9

SFU4010-4

40

10

6.35

4

63

93

78

70

14

93



6

9

SFU5010-4

50

10

6.35

4

75

110

93

85

16

95



6

11

SFU6310-4

60

10

6.35

4

90

125

108

95

18

97



6

11

SFU2505-4

25

5

3.175

3

40

62

51

48

10

50



6

5.5

SFU3205-4

32

5

3.175

4

50

80

67

62

12

51



6

6.6

SFU2505-3

25

5

3.175

3

40

162

51



10

55



6

5.5

SFU5005-4

50

5

3.175

4

71

110

90

85

14

55



6

9

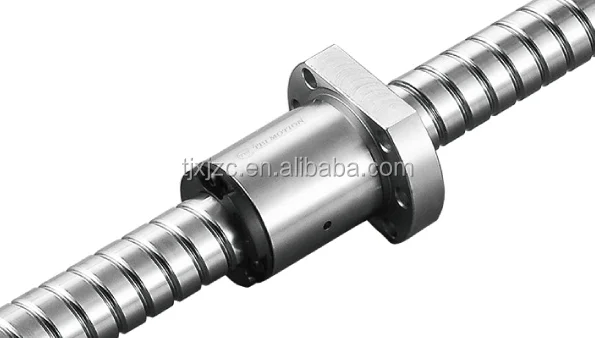

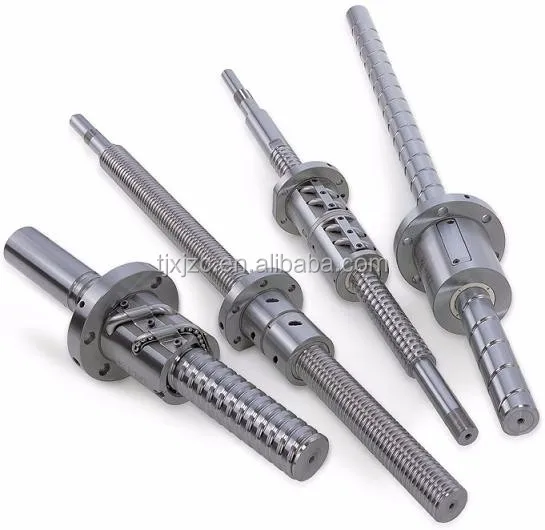

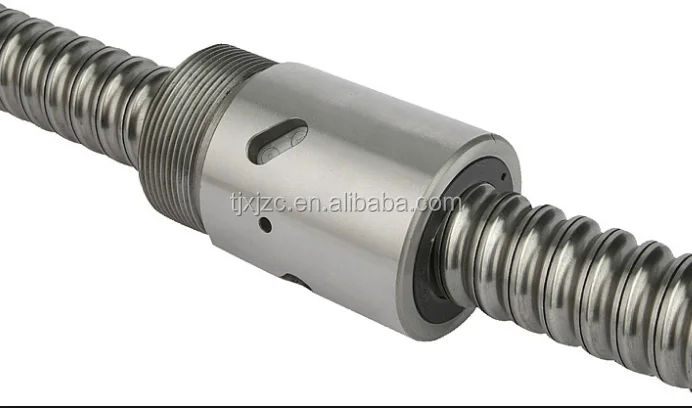

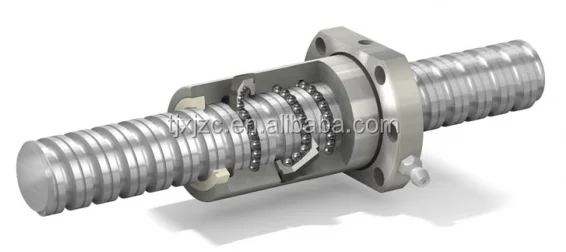

ball screw and matched ball screw nut (38).pnglinear guide and ball screws.jpgball screw and matched ball screw nut (26).pngball screw and matched ball screw nut (37).png

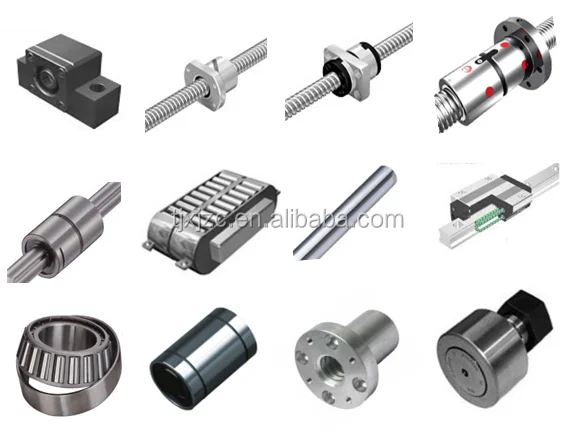

We also supply:

bearing types.png
