Size 12x28x11mm Steel plate single row stamping bearing 101 for luggage cart Transmission and power equipment

  • 10 - 99 Units
    $0.16
  • >=100 Units
    $0.15
Brand Name:
Japan sweden or China brand
Outside Diameter:
6 - 28 mm
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(days) 2 Negotiable
Customization:
Graphic customization (Min. Order: 1000 Units)
Customized packaging (Min. Order: 1000 Units)

More

Customized logo (Min. Order: 1000 Units) Less
Samples:
$0.16 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Structure:
Deep Groove
Type:
Ball
Place of Origin:
Japan sweden or China
Model Number:
stamping bearing 101
Bore Size:
5 - 10 mm
Number of Row:
Single Row
Precision Rating:
high precision
Seals Type:
open, zz or 2rs
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Energy & Mining
Product name:
A
Material:
Chrome Steel GCR15
Feature:
Stable Performance Low Voice
Cage:
Steel Cage.nylon Cage
Package:
Cartons Plastic Tube
Clearance:
C0 C1 C2 C3 C4
Size:
standard size and can customize
Service:
OEM Service.Design Service
sealed ot not:
ope or with iron or plastics seal
Sample:
Avaliable
Supply Ability
Supply Ability:
1000 Unit/Units per Week
Packaging & Delivery
Packaging Details
Stamping bearings are packed with standarded export packing
Port
any port
Lead Time :
Quantity(Units) 1 - 100 >100
Est. Time(days) 2 To be negotiated

Size 12x28x11mm  Steel plate single row stamping bearing 101 for luggage cart Transmission and power equipment12._01.jpg

Product Description



Stamping bearings: the most representative stamping bearings, versatile, can withstand radial load and bidirectional axial load; suitable for high-speed rotation and low noise, low vibration; seal with steel dust cover or rubber seal The bearing is pre-filled with a proper amount of grease; the outer ring with a snap ring or flange bearing is easy to axially position and easy to install inside the housing; the maximum load bearing is the same size as the standard bearing, but inside, There is a filling groove in the outer ring, which increases the number of balls and increases the rated load.

stamping beairng (1).png



We provide professional production of various types of stamping bearings, stamping bearings 101, 6202, 6203, 6204, 6205 and similar specifications, the specific dimensions are as follows:
Belt along the outer diameter: 54 outer diameter: 50.8 inner diameter: 26,
Belt along the outer diameter: 54 outer diameter: 50.8 inner diameter: 25.5,
Belt along the outer diameter: 51 outer diameter: 47 inner diameter: 26,
Belt along the outer diameter: 51 outer diameter: 47 inner diameter: 25.5,
Belt along the outer diameter: 51 outer diameter: 47 inner diameter: 20,
Belt along the outer diameter: 51 outer diameter: 47 inner diameter: 19,
D1:45 D2:42 d:20,
D1:45 D2:42 d:19,
D1:45 D2:42 d:17,
There are D1:38 D2:35 d are 20, 19, 17, 16, 15, 13, 12.5, 12.2, respectively.
There are D1:35 D2:32 d are 12.7, 12.5, 12.10, respectively.
There are D1:32 D2:28.6 d are 12.7, 12.5, 10 respectively.
There are D1:29 D2; 26 d are 12.7, 12.5, 12.10, and 8, respectively.
There are D1: 26.5 D2: 23.4 d are 10, 8, and 6, respectively, and there are many other similar models.

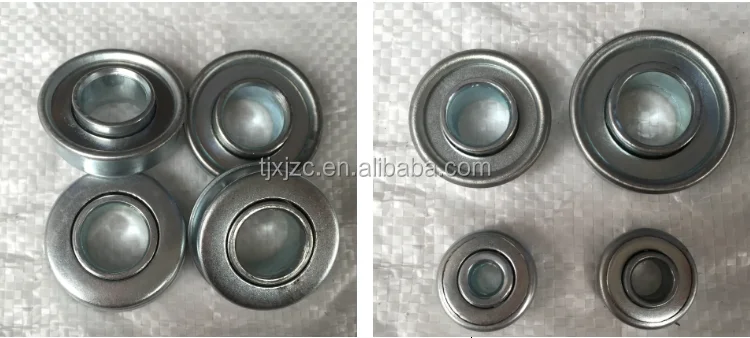

Product show


stamping beairng (2).png

Application

Stamping bearings are mainly used for skipping casters, garage doors, trolleys, etc.
Stamping bearings are widely used in casters, rollers, conveyors, trolleys, machinery, luggage, automobiles and other transmission and power equipment.
