CPC originals MR15WNSSVON Miniature Linear Guide blocks MR15WN

  • 1 - 49 Units
    $30.00
  • >=50 Units
    $29.00
Guide Width or Diameter:
15-45mm
Guide Length:
100mm-4000mm or customized
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 50 >50
Est. Time(days) 2 Negotiable
Report Suspicious Activity
Overview
Quick Details
Model Number:
linear guide rail MR15WNSSVON
Place of Origin:
Taiwan, China
Brand Name:
from taiwan
Material:
bearing steel
Codding number:
CNC machine tool CPC linear slide
linear guide rail:
CPC MR15 MR15MN / MR15WN / MR15ML / MR15WL block bearings
Description:
linear rail for rolling machine
goods:
MR15WL MR15WNSSVON MR15MNZZ MR15WNSS1V1N-160L-20/20
Product name:
Linear Guideway Rail MR15WNSS1V1N-160L-20/20
Type:
Linear Rolling Guide rail
Application:
Automation Line Railway
Performance:
High Running Performance
Feature:
High Load Capacities
block bearings:
CPC MR15 linear guide rail MR15MN / MR15WN / MR15ML / MR15WL
Supply Ability
Supply Ability:
200 Unit/Units per Week Abba Hgh25 Hgh20Ha Linear Guides Brs20B
Packaging & Delivery
Packaging Details
standard export packing
Port
any port
Lead Time :
Quantity(Units) 1 - 50 >50
Est. Time(days) 2 To be negotiated
Product Description



 CPC originals MR15WNSSVON Miniature Linear Guide blocks MR15WN

linear guide system we also call it linear guide rail,  slide block, linear motion, linear guide CPC linear guideway, CPC linear module, CPC linear actuator,CPC linear guideway
CPC Linear Guide is the standard end seal design can be hermetiv and dustrptoof effectivly,CPC Linear Guide can also maintain the products life,Reduce lubrication grease consumption,and ensure a long-lasting lubrication effect,The special desgin of seal lip can generate few friction force without influrncing its running smoothness.


Country (Region) (Region) of origin :Made In TaiWan, This is Original part that we are selling.

Please be advised the CPC linear guide is the length of 1000mm each pieces,The butt-jointing is required when lengths exceed max. For detailed information,please contact me immediately.We can cut the length for your need.



ModelGuide rail (mm)Block(mm)
W1H1PP3D×d×g1WLL1P1P2ΦEh2
MR15WL429.540238×4.5×4.56074.558.535452.53.612
MR15WN429.540238×4.5×4.56055.539.520452.53.612
MR12WL248.540-8×4.5×4.54059.44628282-10
MR12WN248.540-8×4.5×4.54044.43115282-10
MR9WL187.530-6×3.5×4.53050.739.524231.5-8.6
MR9WN187.530-6×3.5×4.53038.227.412211.5-8.6
MR7WL145.230-6×3.5×3.52540.430.119191.2-7
MR7WN145.230-6×3.5×3.52531.621.210191.2-7
MR5WL10420-5.5×3×1.61727.221.211130.8-5
MR5WN10420-5.5×3×1.61721.115.16.5130.8-5
MR3WL62.615-4×2.4×1.51221158---3.5
MR3WN62.615-4×2.4×1.51215104.5---3.5



There are other models like:

MR3MN MR3WN MR3ML MR3WL MR5MN MR5WN MR5ML MR5WL MR7MN MR7WN MR7ML MR7WL MR9MN MR9WN MR9ML MR9WL MR12MN MR12WN MR12ML MR12WL MR25FL MR15MN MR15WN MR15ML MR15WL MR15ML MR15MN MR12ML MR12MN MR9ML MR9MN MR7ML MR7MN MR5ML MR5MN MR3ML MR3MN MR15WL MR15WL MR15WN MR12WL MR12WN MR9WL MR9WN MR7WL MR7WN MR5WL MR5WN MR5LC MR5WNC MR3WL MR3WN MRU15M MRU12M MRU9M MRU7M MRU5M MRU15W MRU15W MRU12W MRU9W MR7W MR5W

These models are only part of our stock product.

If you need other models, please contact us :)

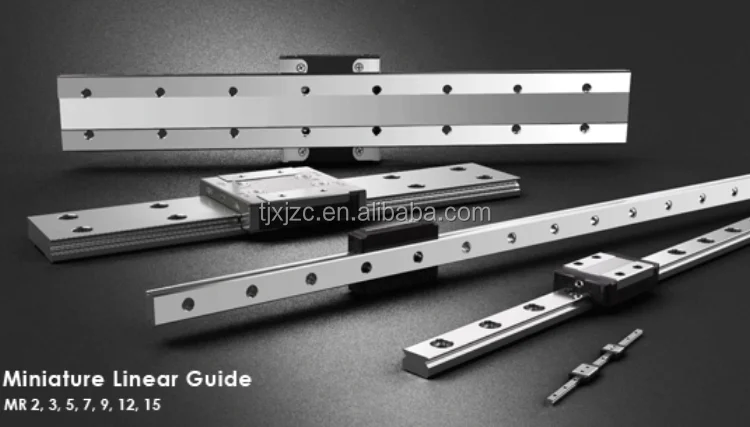

Product show

Rail slider has high positioning accuracy,
low wear, long-term maintenance of accuracy,
easy assembly and interchangeability Lubricating structure is simple.
It can bear both upper and lower feet.



Features of CPC guide rail and blocks:

High load, high moment function
Steel plate reinforcement design
Unique ball re-circulation design
Dust proof design
Embedded inverse hook design
Lubrication storage design

Precision MR Miniature Linear Guide series have three accuracy options:

Precision(P),High(H),Normal(N).
Material for miniature linear guide is all made by heated treated stainless steel,including the rail, steel body of block and balls.

Application





  Machining Centers, Injection Machines, Machine Tools, Presses, Precision Machining
    Centers, Automation, Heavy Duty Cutting Machines, Transportation Equipment,.





\
